BRC Fencing: Specifications, Applications, and Benefits China

BRC Fencing: Specifications, Applications, and Benefits China

BRC fencing is a kind of welded wire fence with a unique roll top and bottom design. It is highly rigid and doesn't need tensioning, which makes it strong and simple to install. The panels and posts are connected using caps and clips, which can be either metal or plastic. BRC fences come in different colors and have great resistance to rust and corrosion.

Galvanized Roll Top Fence /Jacaranda Fencing /Wire Mesh Roll Top Fencing

Specifications in a Simple Table:

Type Mesh Size (mm) Panel Height (mm) Panel Width (mm) Wire Thickness (mm) Number of Curves Post Length (mm) Number of Brackets
Mesh-T1 50x200 900-2400 2500/2750/3000 4.0 2-4 1600-2800 3-6
Mesh-T2 60x150 900-2400 2500/2750/3000 4.0 2-4 1600-2800 3-6
Mesh-T3 65x150 900-2400 2500/2750/3000 4.0 2-4 1600-2800 3-6

Folded Security Fence Options:

Mesh Size (mm) Wire Thickness (mm) Post Size (mm) Width (m) Length (m)
250x50 to 100x50 3 to 5 60x60 to 48x48 1.2 to 2.4 2.4 / 3.0

BRC Fencing Post Types:

  • Square steel post: 60x60mm, 50x50mm
  • RHS steel post: 40x60mm
  • Peach shape post: 50x70, 70x100
  • Round section post: 48mm, 60mm

Australian Standard AS2423 roll top fencing / BRC fence / Jacaranda Fencing 2

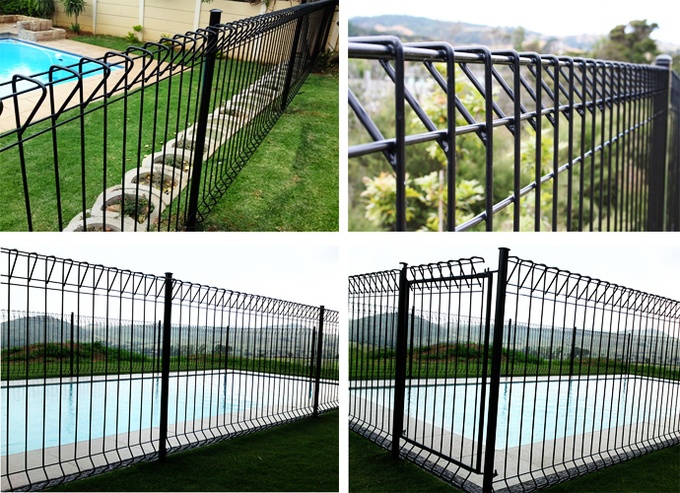

Australian Standard AS2423 roll top fencing / BRC fence / Jacaranda Fencing 3

BRC Mesh Panel Types:

Panel Type Mesh Size (mm) Height (mm) Width (mm) Line Wire x Cross Wire (mm) Number of Curves Post Length (mm) Number of Brackets
Mesh-T1 50x200 900 2500/2750/3000 4.0x4.0 2 1600 3
    1200 2500/2750/3000   2 2000 4
    1500 2500/2750/3000   2 2200 4
    1800 2500/2750/3000   2 2500 4
    2400 2500/2750/3000   4 2800 6
Mesh-T2 60x150 As above As above As above As above As above As above
Mesh-T3 65x150 As above As above As above As above As above As above

Folded Security Fence Specifications:

Mesh Size (mm) Wire Diameter (mm) Square Post (mm) Width (m) Length (m)
250 x 50 5 60 x 60 x 1.5 1.2, 1.5, 1.8, 2.1, 2.4 2.4 / 3.0
200 x 50 3 60 x 60 x 2.5 As above As above
150 x 75 4 48 x 48 x 2.5 As above As above
150 x 50 3.5 60 x 60 x 2.0 As above As above
100 x 50 4.5 48 x 48 x 2.0 As above As above

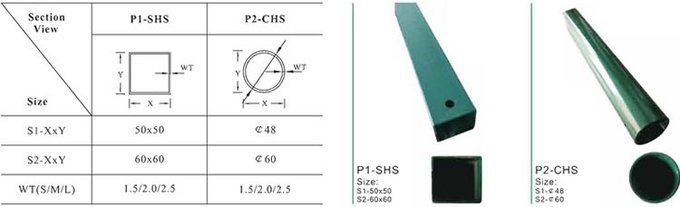

Post Options:

Post Type Dimensions
SHS Steel Post 60x60mm, 50x50mm
RHS Steel Post 40x60mm
Peach Shape Post 50x70mm, 70x100mm
Round Section Post 48mm, 60mm

BRC Fencing Applications and Benefits:

  • Where to Use BRC Fences? Airports, ports, gardens, pools, roads, and uptowns for protection. They're also great for hotels, restaurants, and supermarkets for both security and decoration.
  • Benefits: They are durable, low on maintenance costs, eco-friendly, have a nice look, provide good visibility, and are simple to replace or adjust.

Australian Standard AS2423 roll top fencing / BRC fence / Jacaranda Fencing 4

BRC Fencing Packaging and Shipping Details:

  1. Panels are on a metal pallet, secured with cardboard and plastic film.
  2. Posts are in PP bags, on a pallet, wrapped in plastic.
  3. Accessories come in a carton.
  4. Custom packaging is available upon request.
