In today's age, security remains a primary concern, especially in spaces like residential areas, recreational spots, and commercial zones. Fences have traditionally been the first line of defense. While there have been various iterations of fences over the years, 3D fence panels stand out due to their unique structure and heightened security features.

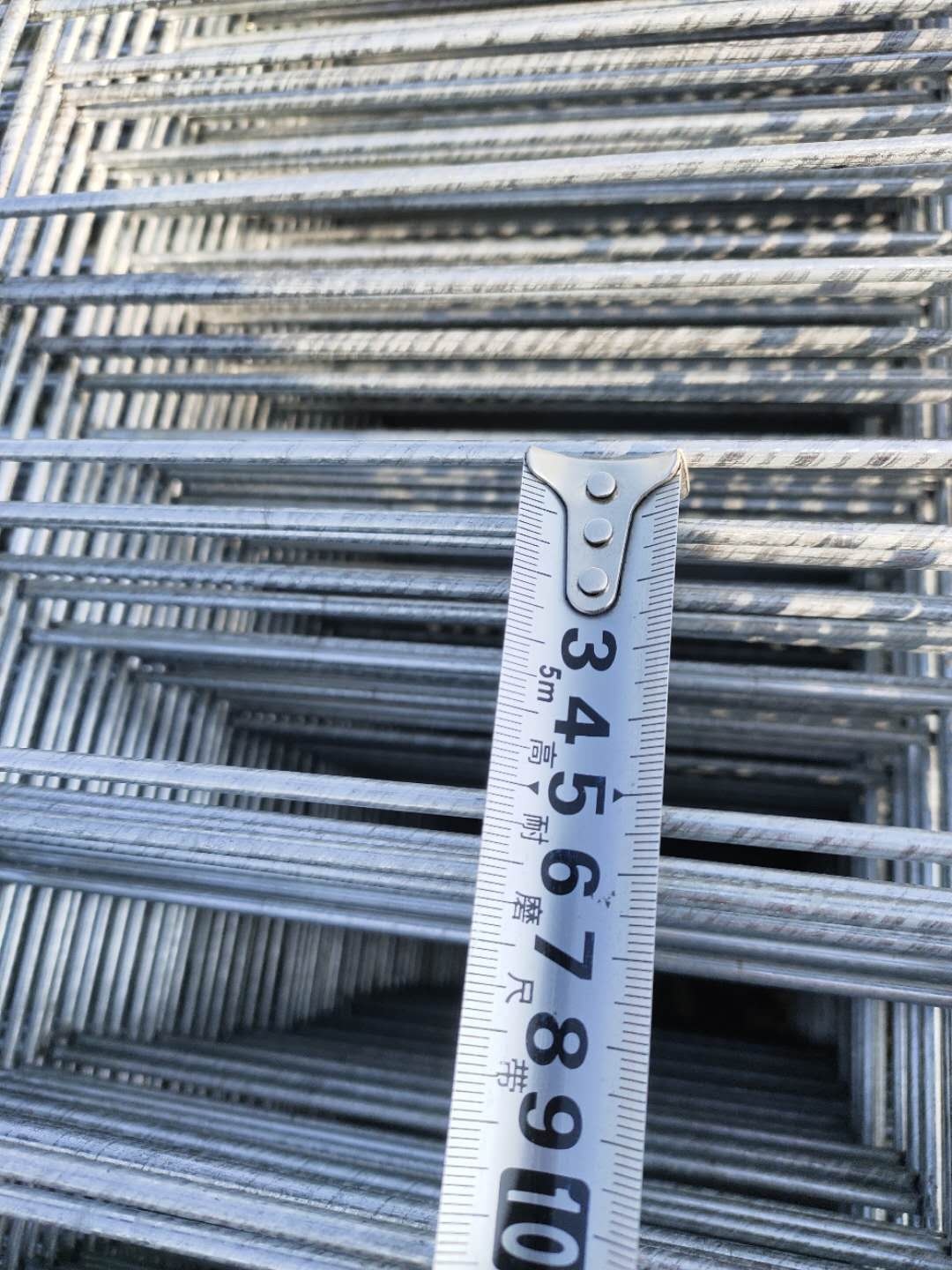

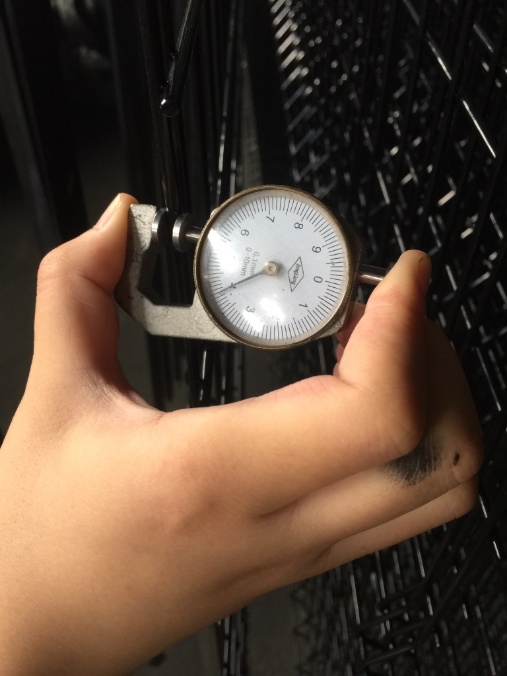

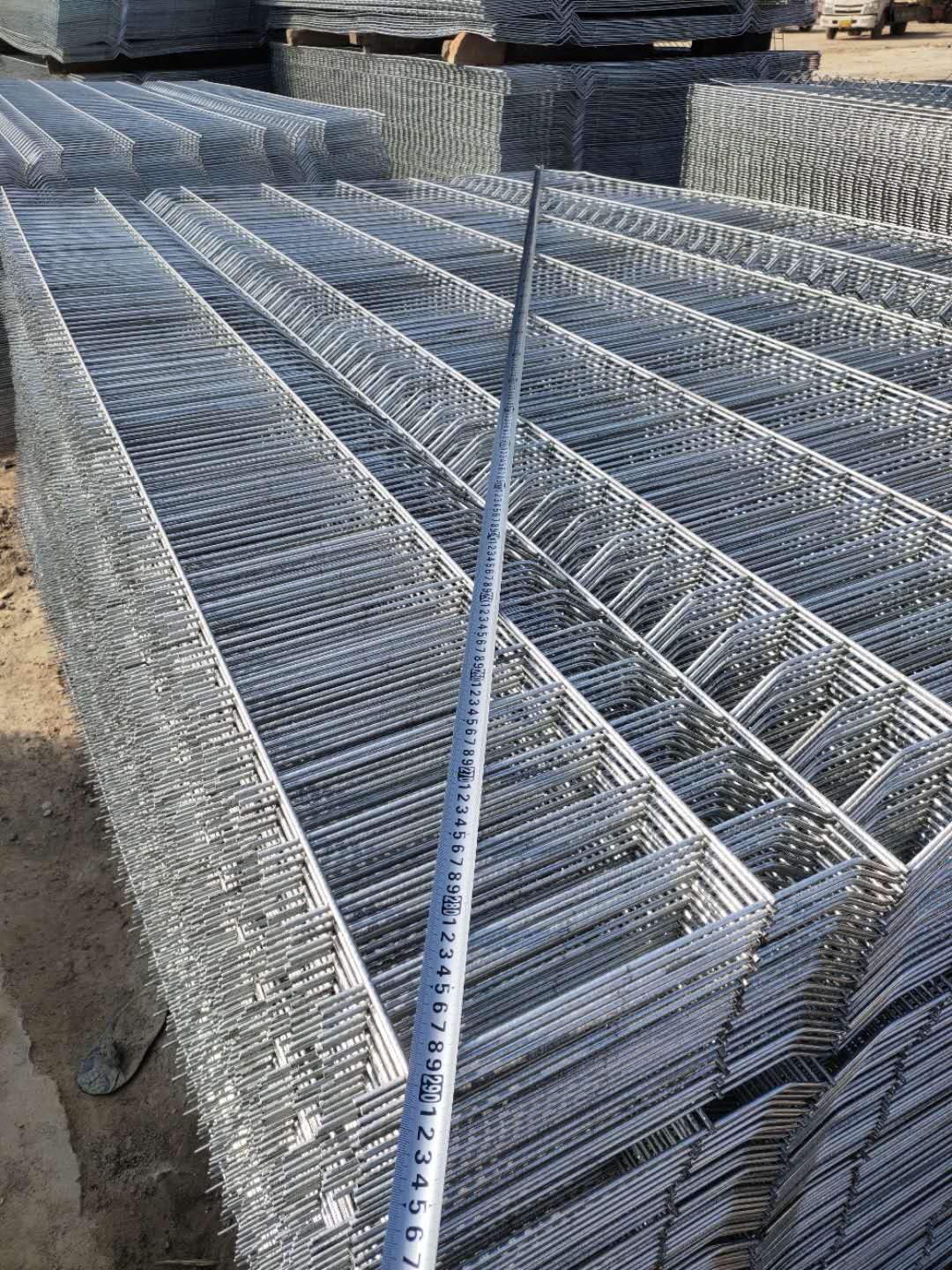

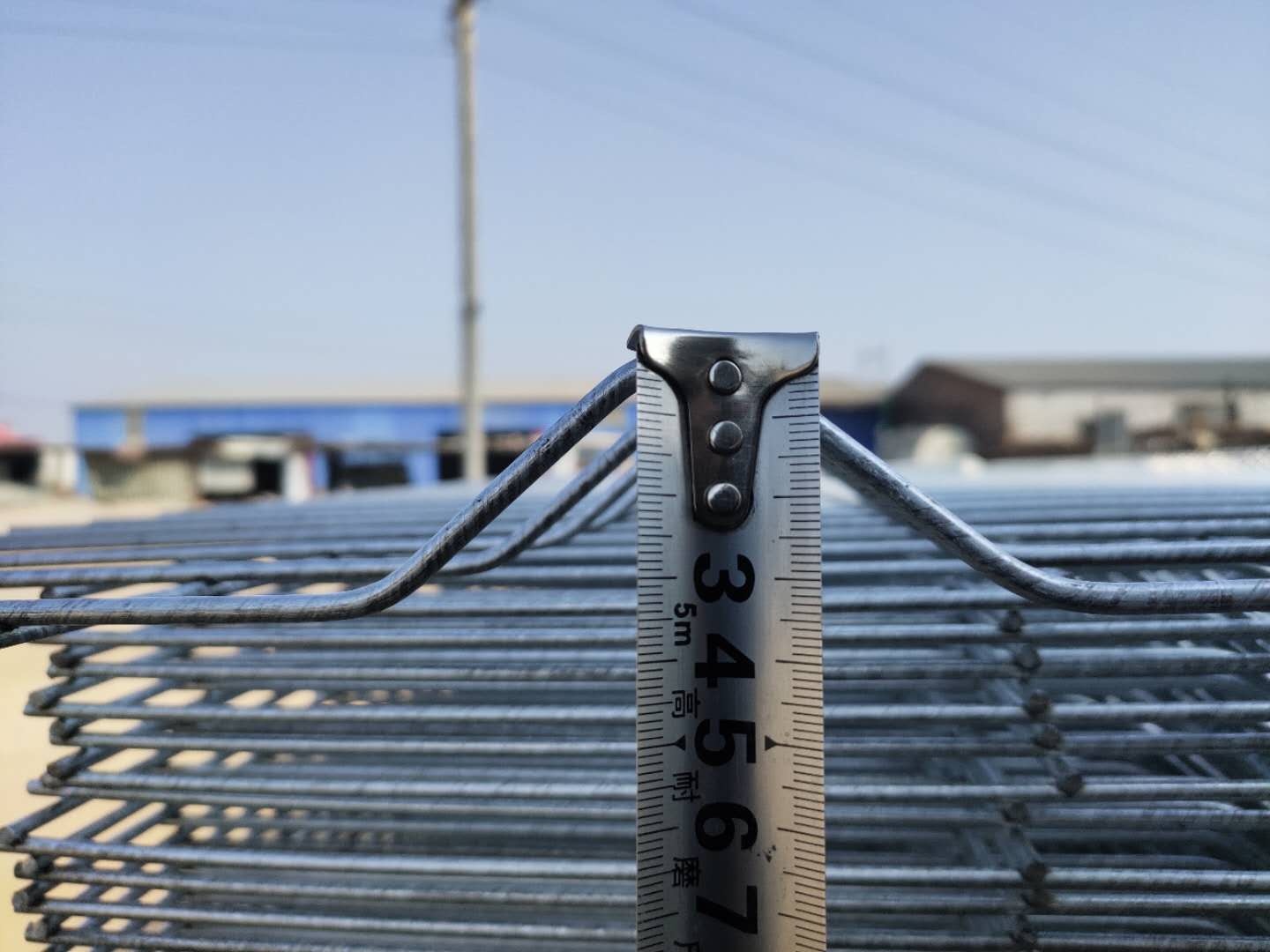

All the size and wire dia, we will help you measure, to make sure all the size is same you want

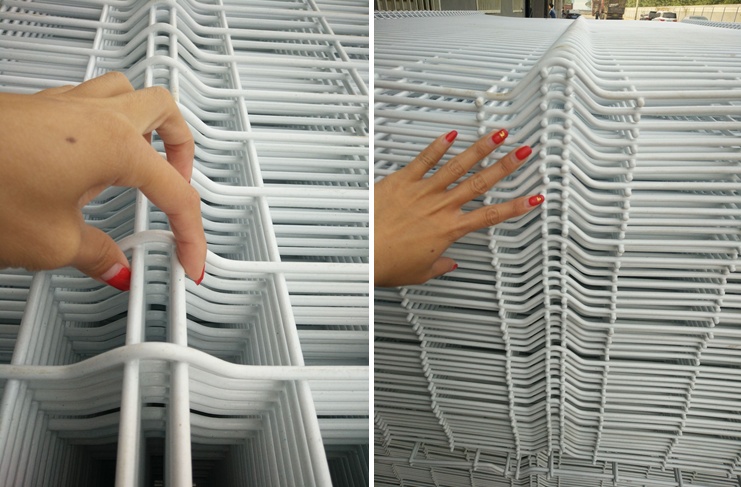

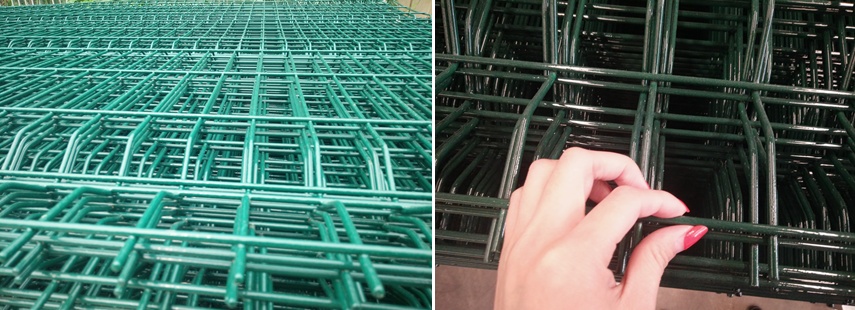

And the color you could choice you want too, black, green or other color:

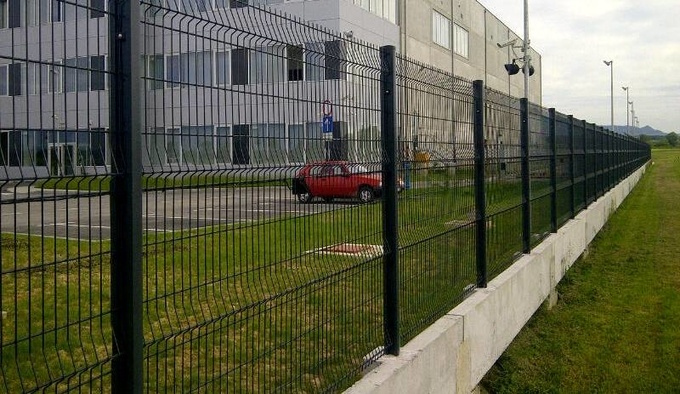

Applications of 3D Fence Panels:

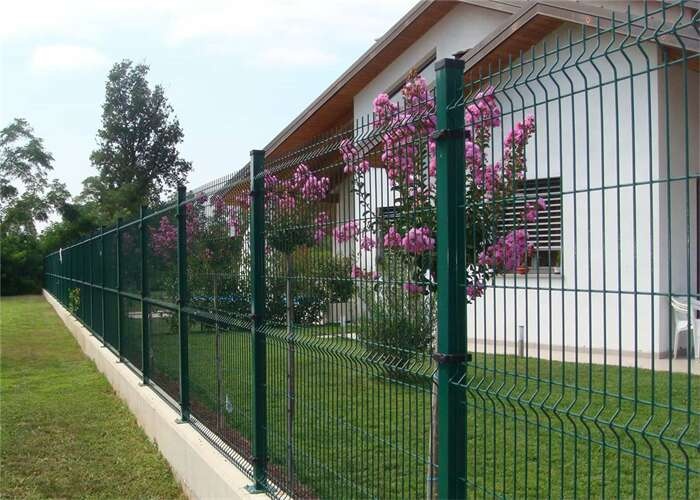

1. Homes: Make your home safe while also making it look good.
2. Parks: Keep play areas safe and secure for kids and families.
3. Schools: Protect students and school property with strong fences.
4. Stadiums: Use around sports areas to keep games inside and safe.
5. Shops: Business places like supermarkets can use these fences to mark boundaries.
6. Public Buildings: For places like town halls or community centers.
7. Airports: Make sure only the right people get into the flying area.
8. Train or Bus Stations: Make waiting areas safe for travelers.
9. Factories: Use around manufacturing places to keep workers safe.
10. Villas and Big Houses: Large homes can use these fences for privacy and safety.
11. Zoos: Keep animals in and people safe by using these strong fences.

Understanding the 3D Fence Panel

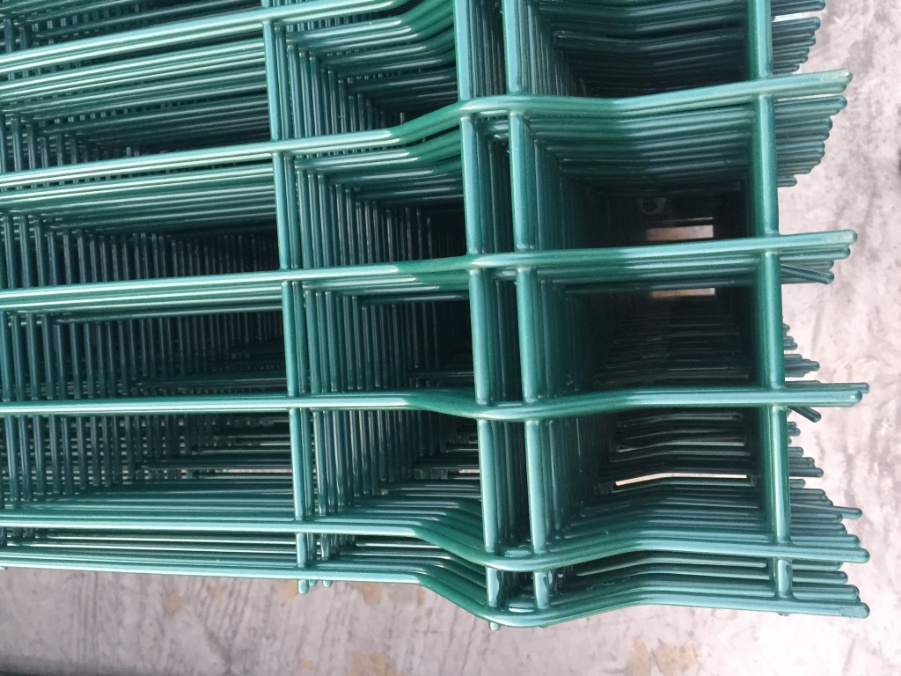

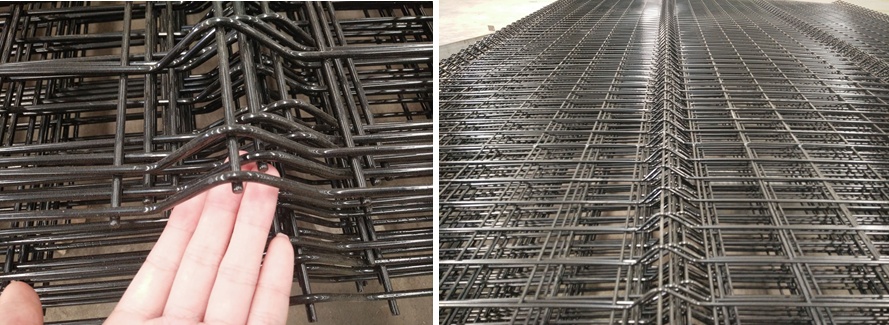

The 3D fence panel, with its innovative "V" shaped beams, brings not only security but also an appealing design aesthetic. These beams are characterized by a horizontal wire that runs the full width of the panel, offering enhanced strength and stability. Mostly crafted from galvanized carbon steel or iron wires, these wires are angled perfectly and then welded to form the panel.

Their modern design and attractive look make them a favorite choice for both residential and recreational areas. Yet, they don't just serve as a visual treat. The strength of the 3D fence panels, combined with a well-tightened bolt assembly and a durable powder coating, assures resilience against theft, vandalism, and the elements.

Specifications at a Glance

3D Fence Panels Specifications

Line wire x Cross wire	Hole Size	Panel Length	Panel Height	Bending No.	Common Color	Surface treatment
4x4mm 4.5x4mm 4.5x4.5mm 5x4mm 5x5mm 6x5mm 6x6mm	50X100mm 50X200mm 55X200mm 75X150mm 100X300mm	2m 2.2m 2.4m 2.5m 2.8m 3m	830mm	2	Green RAL6005 Grey RAL7016 Brown RAL8019 Black RAL9005 White RAL9010	1.Hot-dipped galvanized after black wire welded 2.PVC coated after galvanized wire welded 3.PE coated after galvanized wire welded
			1030mm	2
			1230mm	2
			1530mm	3
			1830mm	4
			2030mm	4
			2230mm	4
			2430mm	4

3D Fence Panels ​Post specifications

Post view	Size	Thickness	Panel height	Base post	Normal post	Surface treatment
	50x70mm	1.0mm 1.1mm 1.2mm	830mm	850mm	1200mm	Galvanized tube PVC coated
			1030mm	1050mm	1400mm
			1230mm	1250mm	1600mm
			1530mm	1550mm	2000mm
	70x100mm		1830mm	/	2400mm
			2030mm	/	2500mm
			2230mm	/	2800mm
			2430mm	/	3000mm

This is just a snapshot. The panels are complemented by posts of high-grade steel and are available in multiple sizes, colors, and finishes. Plus, their installation is designed for speed and ease, ensuring they can be set up without extensive labor or specialized tools.

Making 3D Fence Panels: A Simple Guide

Ever wondered how 3D fence panels are made? Let’s break it down into simple steps so you can understand the whole process easily.

1. Getting Ready:
First, we gather all the materials we need. Just like how a chef gathers ingredients before cooking, we collect the right type of metals and coatings.

2. Shaping the Wire:
Next, we straighten and cut the wire. Think of it like cutting string to the right length for a craft project.

3. Joining Together:
Now, we weld or join the wires. It’s a bit like sewing pieces of cloth together, but with metal.

4. Making the Design:
After welding, we fold or bend the wires to give them that unique 3D shape. Imagine folding paper to make a cool design!

5. Strengthening the 3D fence panel:
We dip the panel in a special bath called ‘galvanizing’. This is like giving the fence a metal bath to keep it strong and shiny.

6. Adding Color:
Once it's strong, we paint it using a method called powder coating. This is like spraying it with a special paint that sticks really well.

7. Packing it Up:
When our 3D fence panel is all ready and looking good, we pack it safely, just like wrapping a gift.

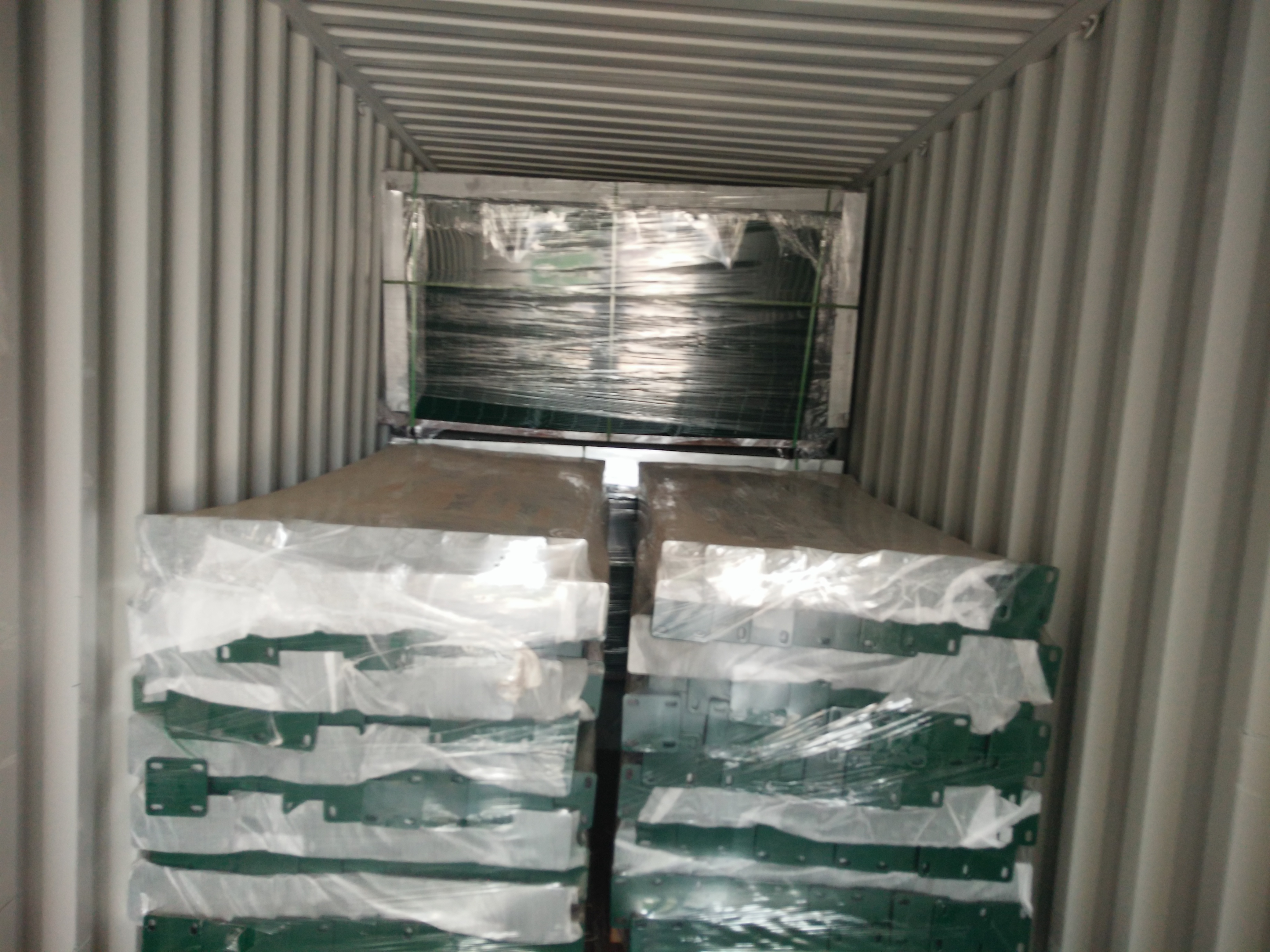

8. Ready to Go:
Lastly, we load our packed 3D fence panel into big containers. They're now ready to be sent to shops or directly to customers.

Installation and Packaging 3D Fence Panels

Installing these fence panels requires ensuring the posts are buried deep enough into the ground, with a recommended depth between 0.5 m to 1.2 m. Furthermore, for heightened security or specific design needs, multiple panels can be mounted atop each other.

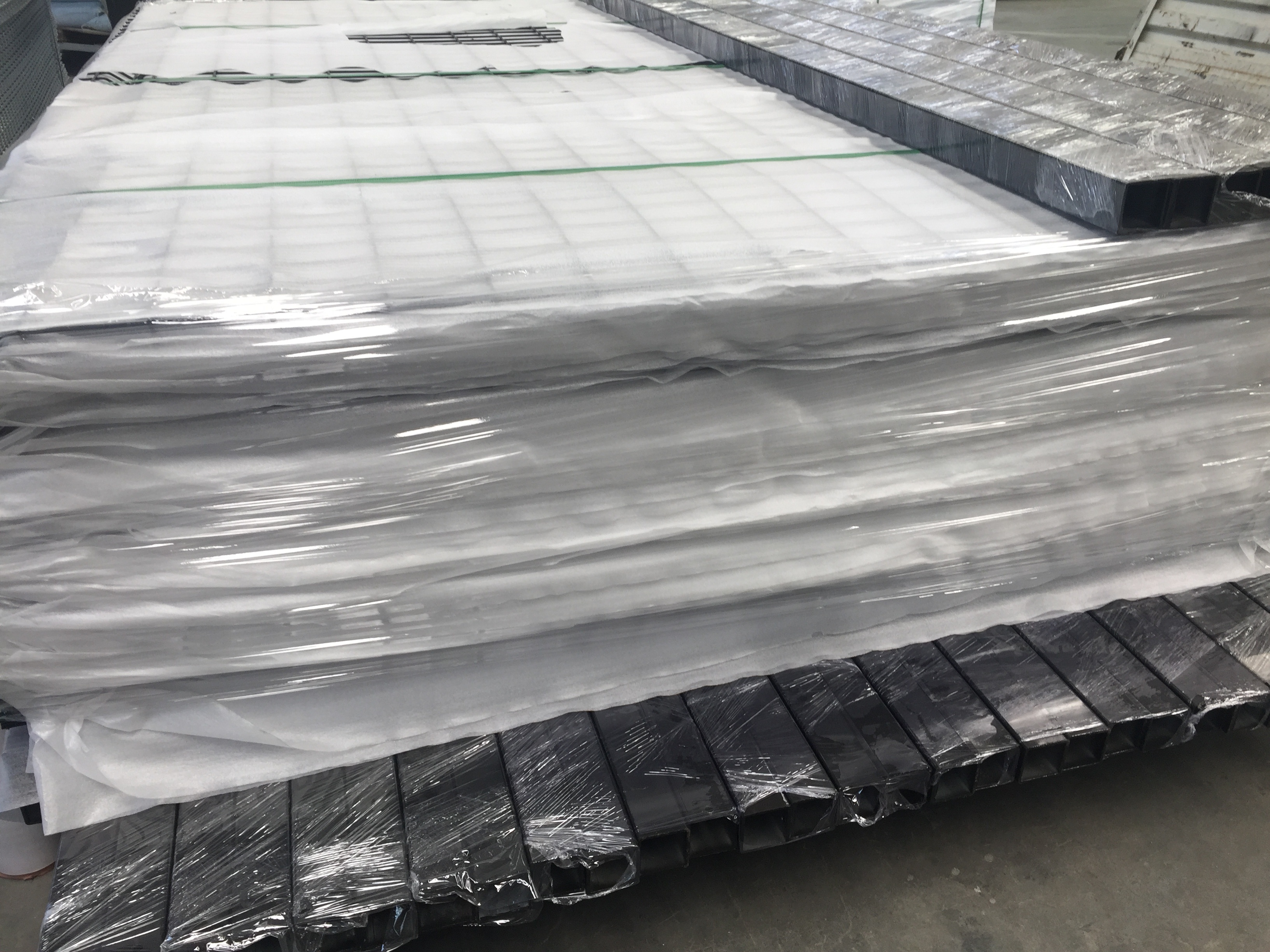

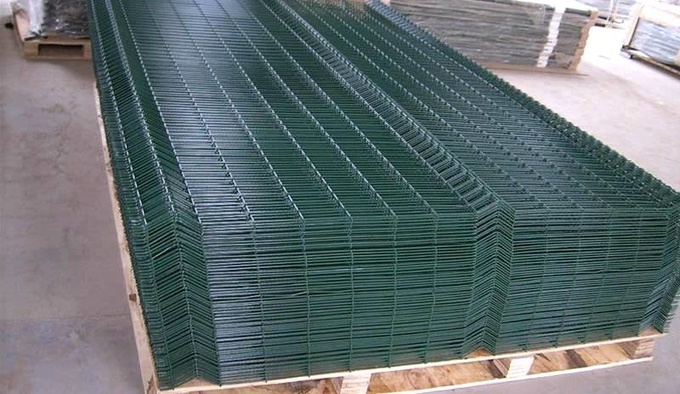

Regarding packaging, BMP ensures each 3D fence panel is securely packed in wooden pallets, enveloped by plastic film, and then firmly taped. This ensures the integrity of the panels during transport.

The Careful Packing of 3D Fence Panels: A Step-by-Step Guide

Protecting a product is just as important as creating it. When it comes to 3D fence panels, the attention to detail extends right up to the packing process. Let's walk through the careful steps taken to ensure these panels reach their new homes in perfect condition.

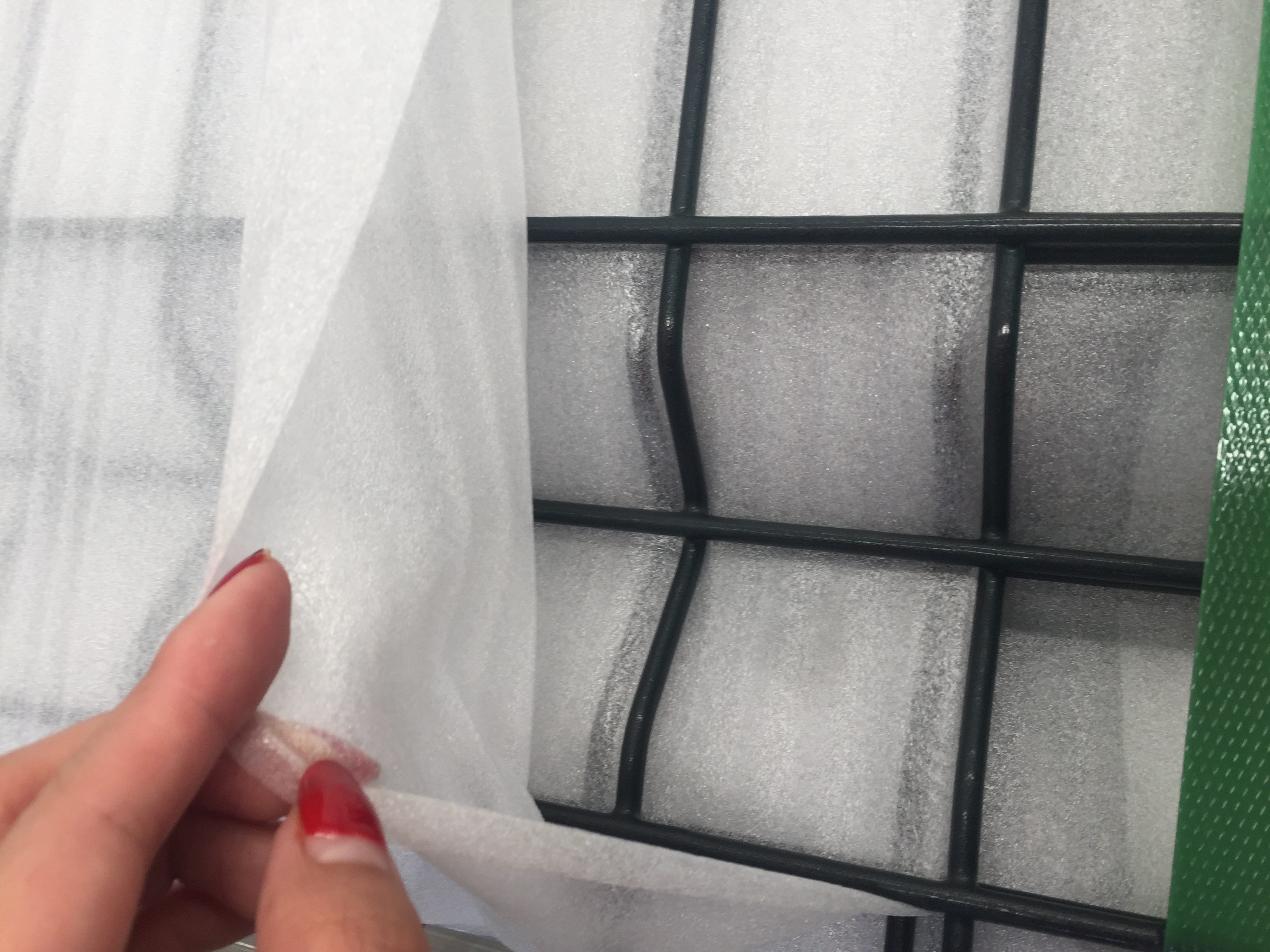

1. A Gentle First Layer:
Before anything else, a sheet of bubble-wrap, that soft plastic film full of tiny bubbles, is laid out. This acts like a cushion, ensuring that the first fence panel doesn’t get scratches from the metal pallet it rests on. It's a bit like using a soft blanket to protect something valuable.

2. Securing The Edges:
Once the panels are stacked, metal plates are fixed to every corner. This is a crucial step as it ensures that the panels remain together and don't move around. Imagine trying to hold a stack of books together without a rubber band; they'd easily fall apart. The metal plates act like that rubber band, keeping everything tight and secure.

3. The Final Protective Touch:
When you're stacking things, the topmost layer often faces the most risk. It's exposed and can easily get damaged. To prevent this, a wooden plate is placed on top of the panels. This acts as a shield, making sure the last fence panel isn’t harmed by the pallet placed on top of it. It's like adding a hardcover to protect a delicate page underneath.

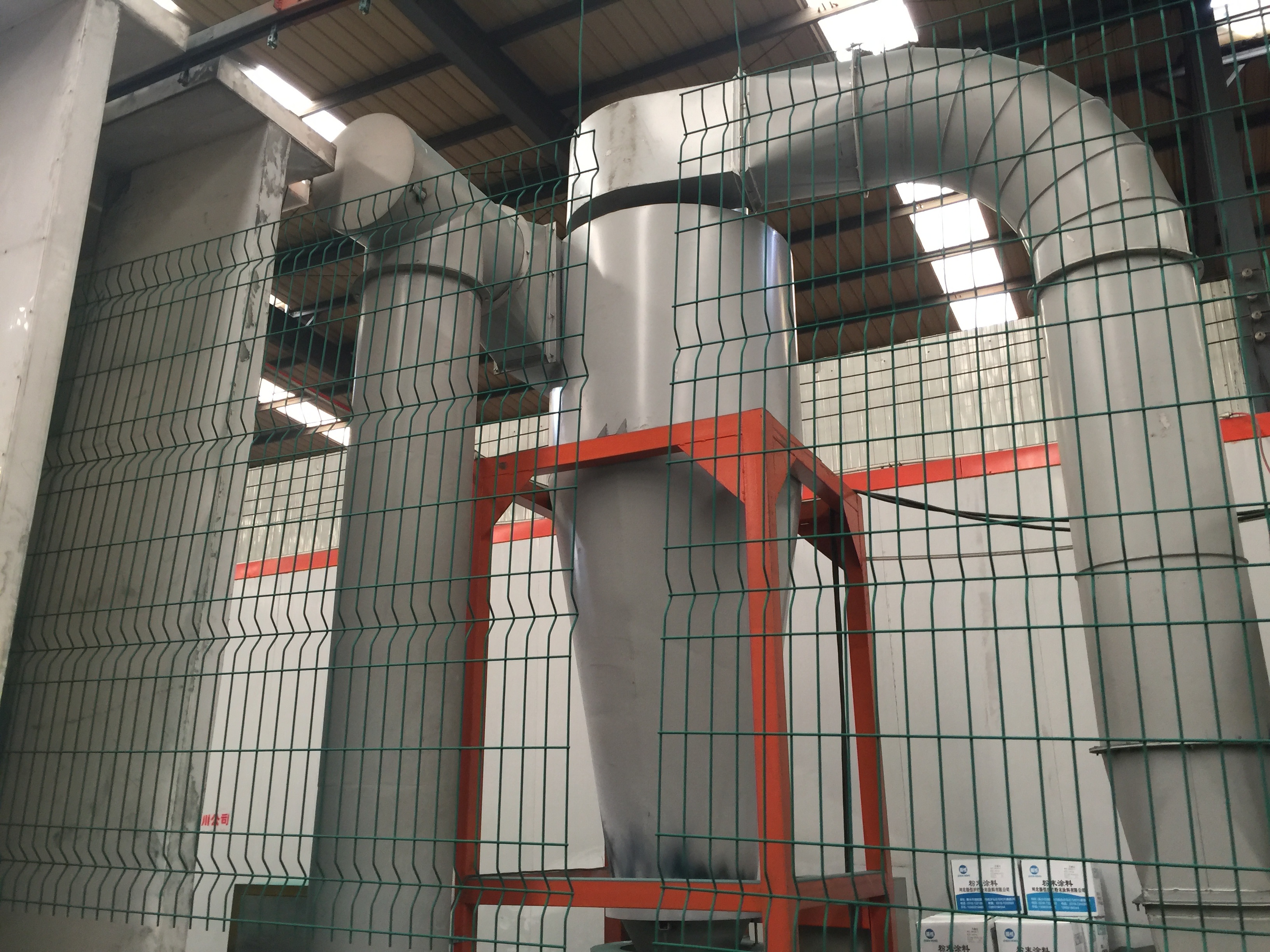

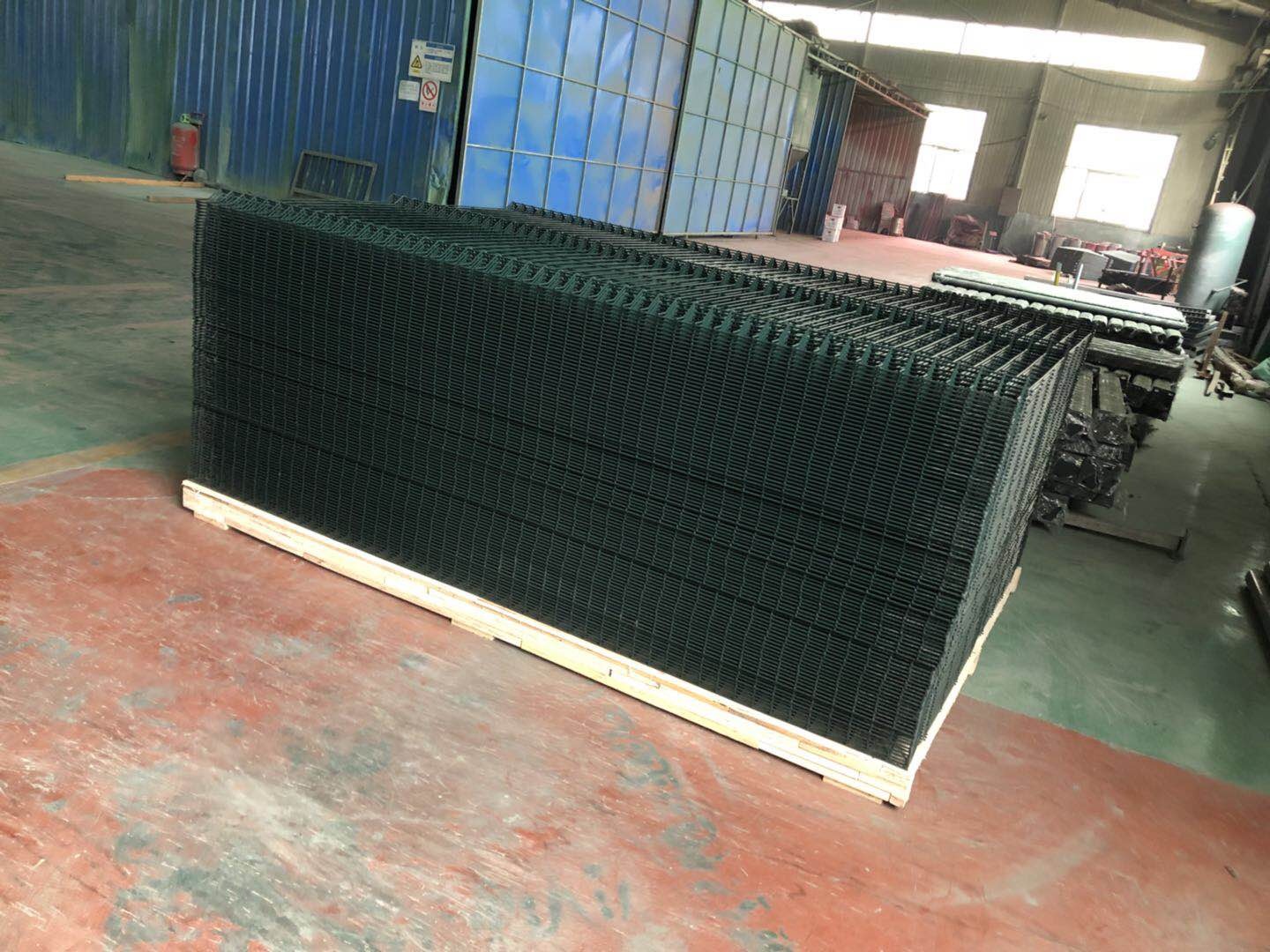

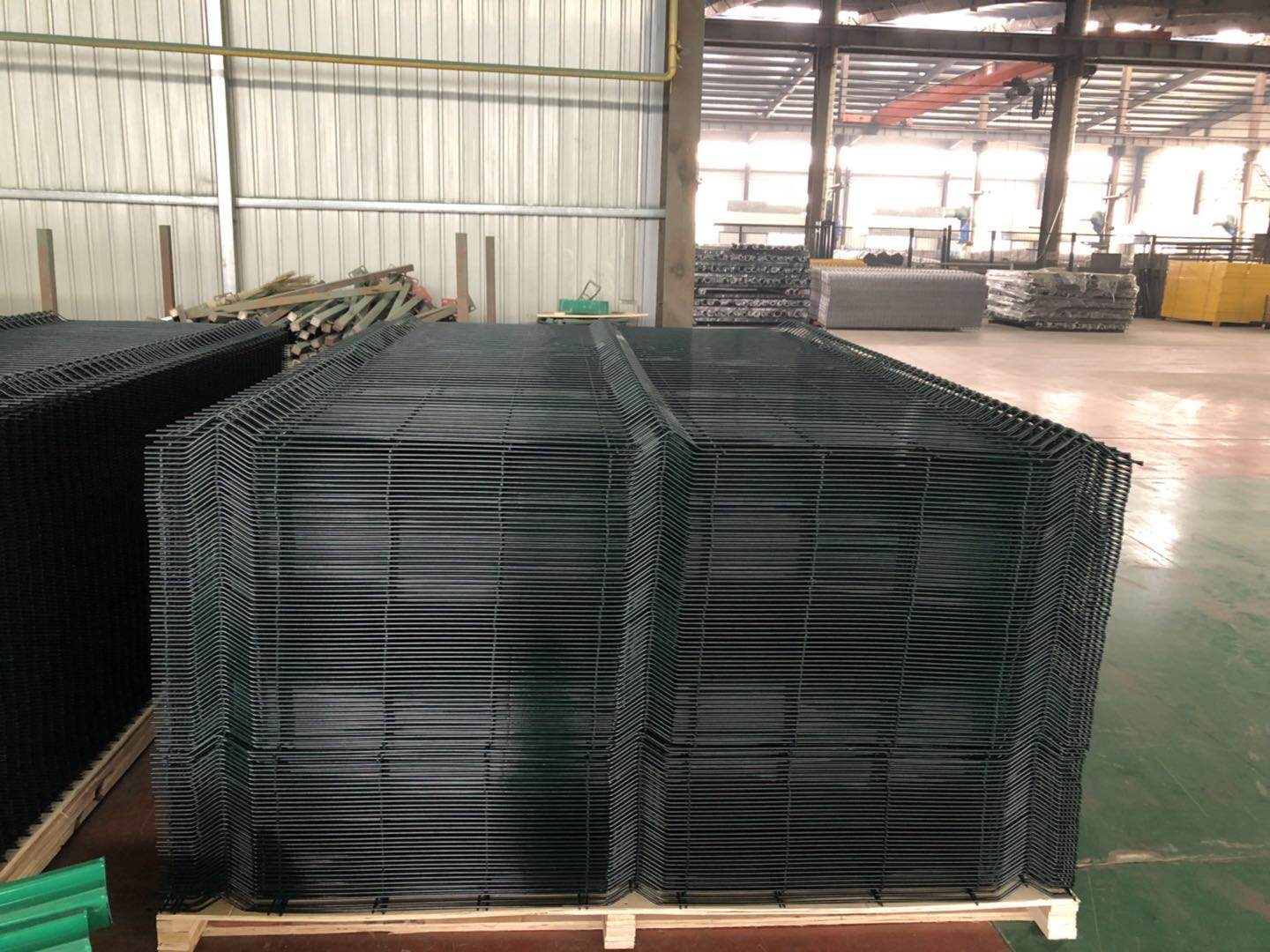

More facotry pictures:





Concluding Thoughts

The 3D fence panels provide a harmonious blend of aesthetics, strength, and function. Their modern design ensures they enhance the visual appeal of any property they enclose. Simultaneously, their robust construction ensures they serve as a formidable deterrent against any potential intruders. Whether you're seeking to secure a commercial establishment, public space, or a personal residence, 3D fence panels offer an effective and attractive solution.
