Chain Link Fence Panels are great for construction sites. They are made from galvanized steel, which means they are tough and won’t rust quickly. The steel is coated with zinc to keep it safe from corrosion. This zinc coating comes in different thicknesses.These panels come in different sizes. The panels are big, and their heights can be 4ft, 6ft, or 8ft. The width is usually 12ft, but other widths like 8ft, 9ft, 10ft, and 14ft are also available.The tubes forming the frame of the panels have different thicknesses and diameters, giving you many options to choose from.

.

Benefits

• Long-Lasting: The panels feature a heavy galvanized coating on low carbon steel diamond mesh, ensuring longevity.
• Security: These panels are ideal for high-security buildings like airports, prisons, and sports fields.
• Force Offset: They are widely used in sports fields to offset force.
• Adjustable: The mesh is separable; you can adjust the length as needed.
• Height: The available height can reach up to 7m.
• Enhanced Security: Adding razor or barbed wire on top adds an extra layer of security.
• Aesthetic Variety: They are available in different colors.
• Ease of Installation: The installation process is simple and straightforward.

Specifications

The 6'X12' temporary chain link fence panels have a 1⅜"(35mm) outer tube. They are hot-dipped galvanized, featuring a mesh aperture of 2½"/63mm, ensuring durability and corrosion protection.

Mesh Size	Wire Diameter	Frame Tube	Frame Thickness
50*50 mm	1.8 - 3.5 mm	32 mm	1.0 mm
60*60 mm	1.8 - 4.0 mm	38 mm	1.2 mm
75*75 mm	2.5 - 4.0 mm	42 mm	1.4 mm
80*80 mm	2.5 - 4.5 mm	48 mm	1.5 mm
100*100 mm	3.0 - 4.5 mm	60 mm	2.0 mm

Attribute	Details
Length	620MM
Width	230MM
Height	90MM
Empty Weight options	0.90kg /1.0kg/1.2kg/1.4kg/2.00kg
Color	RAL
Packing	Metal pallet wrapped with plastic film
Feature	Parallel hole 25mm, 28mm, 38mm, 40mm, 42mm, 48mm
Materials	HDPE

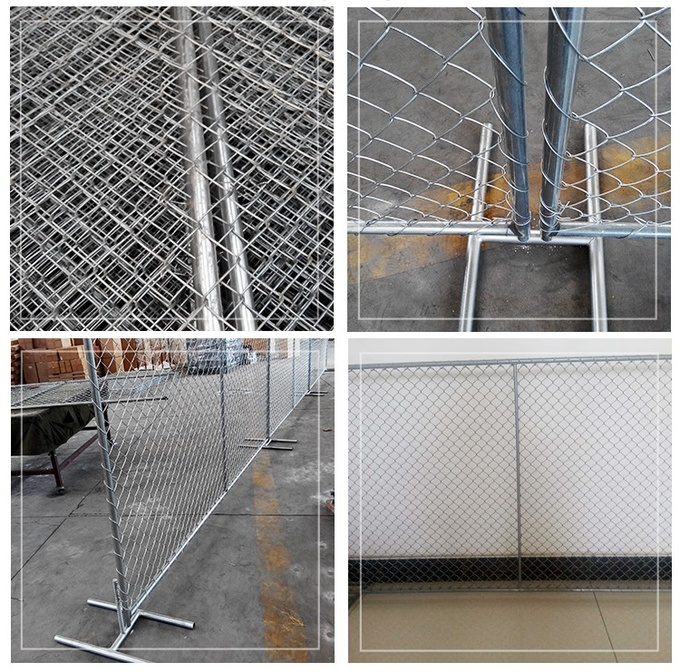

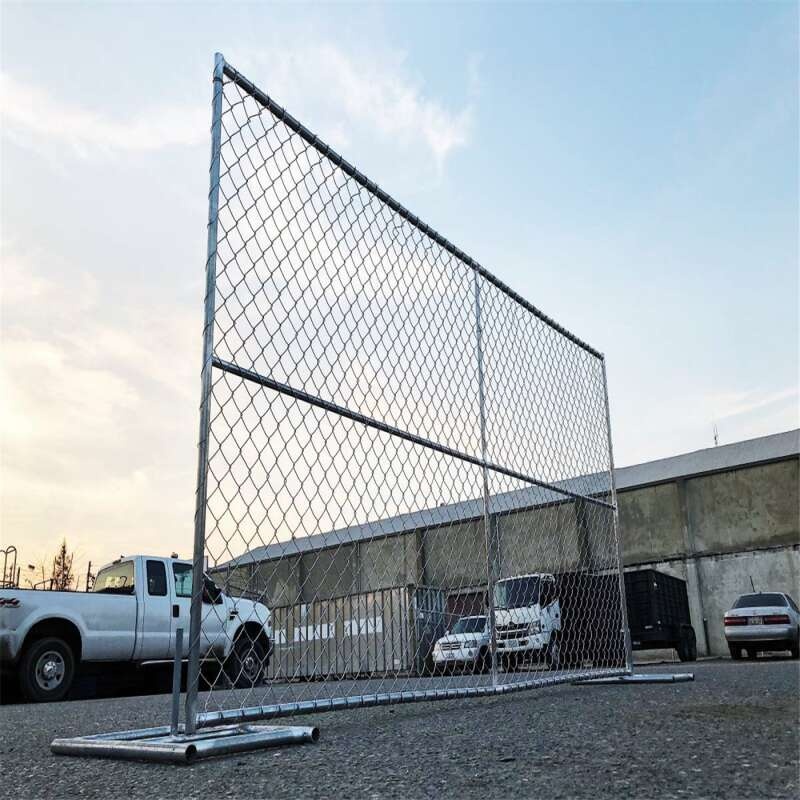

Photos

 Chain Link Fence Panels

• Tubing Varieties: The panels have tubing options from 1¼"(32mm) to 1⅞"(48mm).
• Tubing Thickness: Thickness ranges from 14ga/2.00mm to 18ga/1.22mm.
• Mesh Aperture: Varieties like 2"x2"/(50mm x 50mm) to 2½"x2½"(63mmx63mm) are available.
• Dimensions: Heights available are 4ft, 6ft, and 8ft with the width most commonly being 12ft, but options like 8ft, 9ft, 10ft, and 14ft are also available.
• Panel Sizes: Regular sizes are 6ft x 12ft, 8ft x 12ft, 4ft x 12ft.

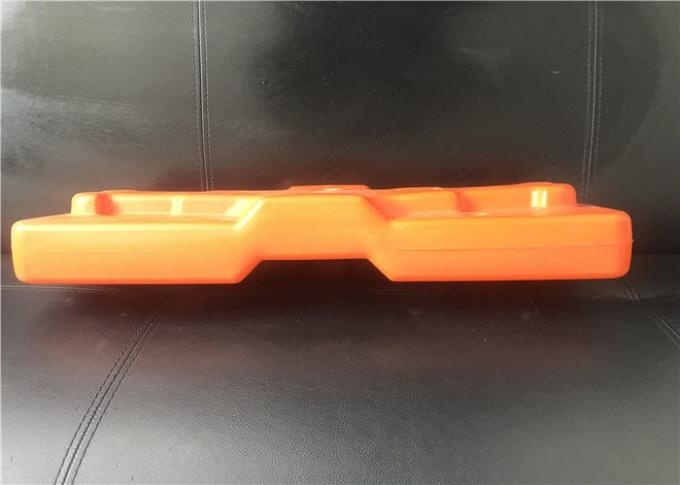

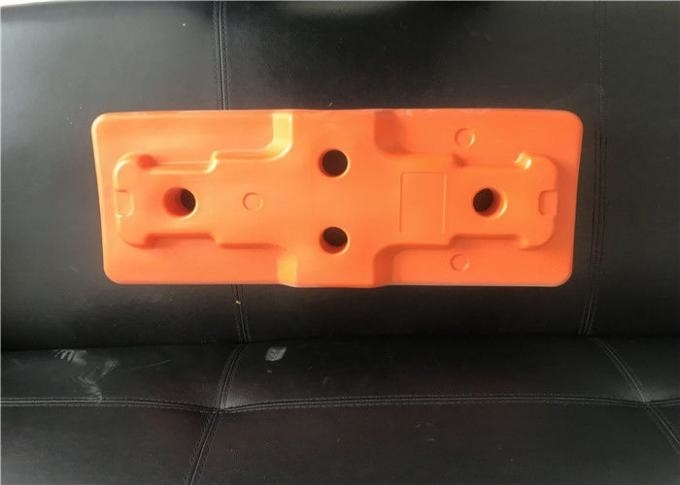

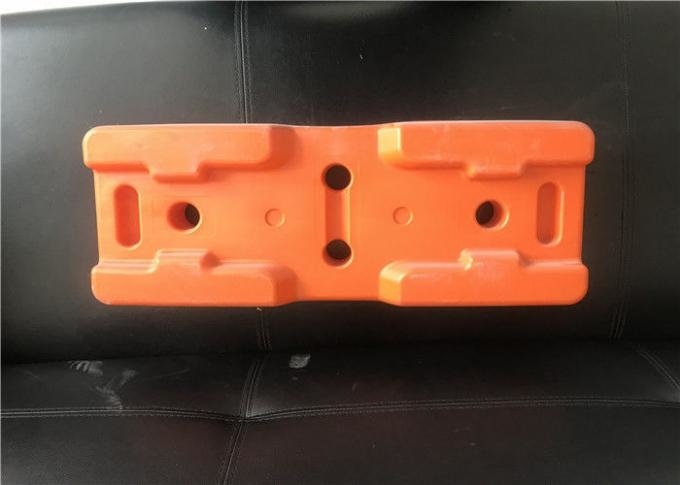

Bases

Panels can be paired with optional bases:

• Base 1: 36" length x 30" width x 8"Height /914mmx762mmx203mm
• Base 2: 36" length x 16" width x 8" Height /914mmx406mmx203mm
• Base 3: 30" length x 18" width x 8" Height /762mm x460mm x203mm

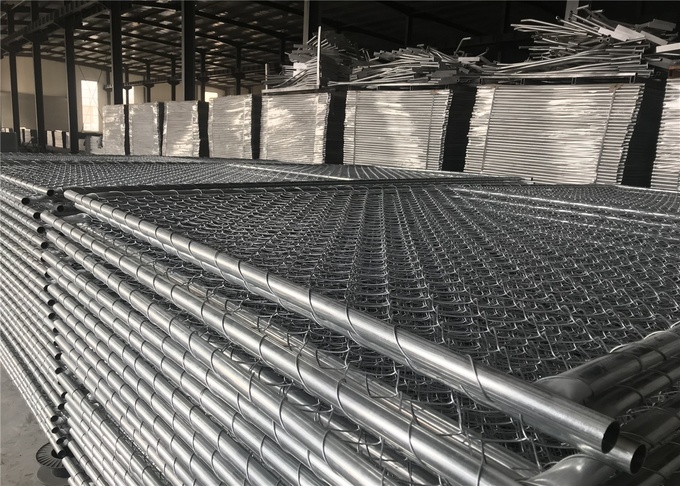

Packaging and Transport Chain Link Fence Panels

For transport, panels are packed securely on metal pallets and are enveloped in plastic, ensuring safe delivery without damage.

Zinc Coating

The protective zinc coating has thickness options, ranging from 14 microns to 84 microns, offering varying levels of protection.

Standard and Finish

The panels conform to the ASTM A392-06 standard. They are constructed from corrosion-resistant zinc-coated galvanized steel.

Construction Options

Tube options include 1¼"(32mm), 1⅜"(35mm), 1½"(38mm), 1⅗"(40mm), 1⅝"(42mm), and 1⅞"(48mm), offering versatility in construction needs.

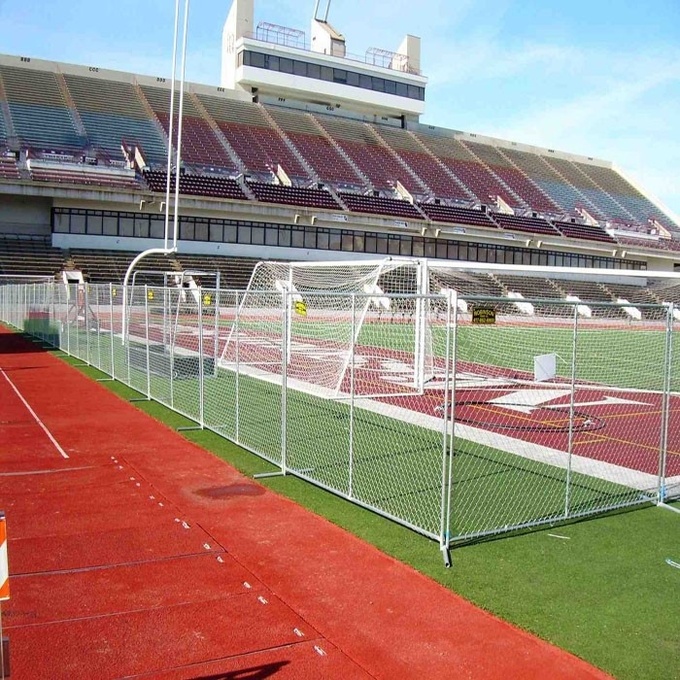

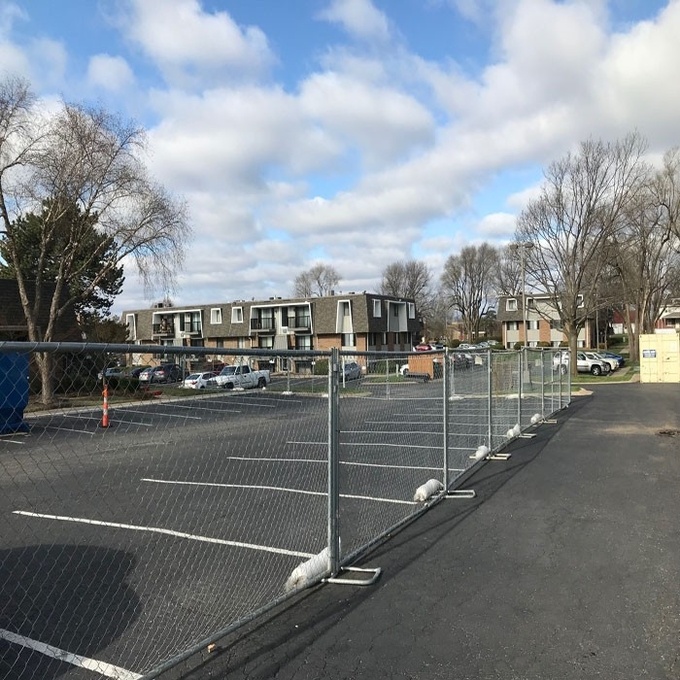

Applications Chain Link Fence Panels

People widely use these panels as protective fences in residential sites, roads, sports fields, playgrounds, zoos, factories, river banks, gardens, and more, proving their versatility.

1. Keep a construction site safe.
2. Make a play area safe for kids.
3. Keep animals in a zoo.
4. Protect gardens and parks.
5. Block off unsafe areas on roads.
6. Keep sports fields secure.
7. Use around homes for extra safety.
8. Help keep order at big events.
9. Protect areas around rivers and banks.
10. Secure equipment and machines.

Buying Chain Link Fence Panels from China Vs. Hiring Chain Link Fence Panels

When you need chain link fence panels, you have two main choices. You can buy them from China, or you can hire them.

Buying from China:

When you buy fence panels from China, you own them. It’s great if you need them often. Chinese manufacturers offer many options and often have lower prices. You can choose different sizes, coatings, and types. After buying, you have the freedom to use them whenever you need. But, remember, you also need space to store them when you’re not using them.

Hiring Chain Link Fence Panels:

Hiring fence panels is another option. This way, you don’t need to worry about storage. It’s a good choice if you only need them for a short time. You can hire the exact number you need and return them when you’re done. This way, you don’t need to invest a lot of money upfront. But, hiring can become expensive if you need the panels for a long time.

Comparison:

Buying from China gives you ownership and more choices but requires storage space. Hiring gives flexibility and is good for short-term needs but can cost more over time.

FAQ Article: Chain Link Fence Panels

Q: What are chain link fence panels?

A: Chain link fence panels are sections of fencing made from woven steel. They offer security and are easy to install and move around.

Q: Where can people use these panels?

A: People can use these panels for construction sites, homes, playgrounds, sports fields, events, and many other places for added security.

Q: Can you adjust the length of the fence?

A: Yes, the panels are separable, so you can adjust the length to meet your needs.

Q: How high can these fence panels go?

A: These panels can go up to 7m in height.

Q: Can you add more security to these panels?

A: Yes, adding barbed wire or razor wire on the top increases security.

Q: What are the color options for the diamond mesh?

A: The beautiful diamond mesh comes in different colors for choice.

Q: Do chain link fence panels require a lot of maintenance?

A: No, these panels have a galvanized coating or plastic coating for corrosion protection, requiring minimal maintenance.

In Conclusion

Chain link fence panels are a crucial component for construction sites and other secure locations. They come in various sizes, and their galvanized, zinc coated finish ensures durability and rust resistance. They are a reliable choice for anyone looking to secure an area temporarily or long term, combining practicality with versatility.
