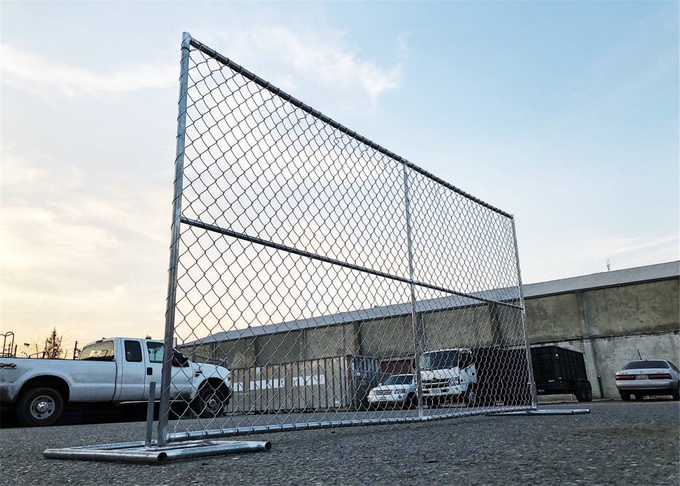

Temporary Chain Link Fencing are an essential component in securing perimeters for various applications. Known for their durability, versatility, and cost-effectiveness, chain link fences, also referred to as diamond wire mesh, rhombic wire mesh, or cyclone fence, are popular choices for both light residential and heavy commercial fencing applications.

Temporary Chain Link Fence / Construction Fence Panels Specification Table:

Attribute	Specifications
Tubing	1¼"(32mm), 1⅜"(35mm), 1½"(38mm), 1⅗"(40mm), 1⅝"(42mm), 1⅞"(48mm) etc.

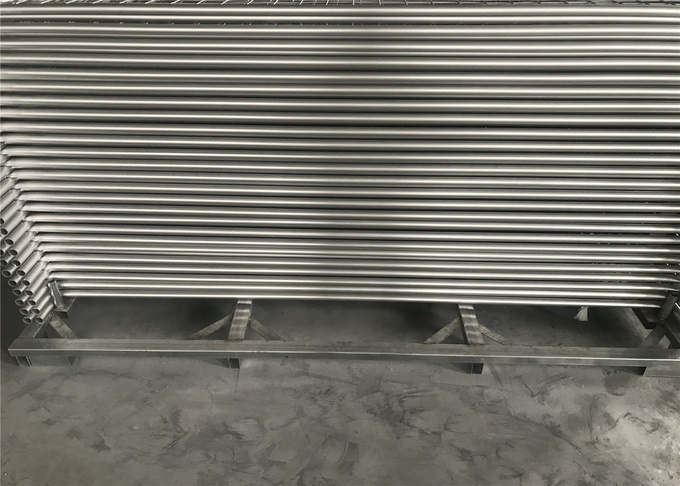

Mesh & Tube	8'X14' with mesh 2½"x2½"(63mmx63mm) and tube 1¼"(32mm) 1⅜"(35mm) 1½"(38mm), wall thick 17ga
Thickness of Tubing	14ga/2.00mm, 14.5ga/1.90mm, 15ga/1.80mm, 15.5ga/1.70mm, 16ga/1.6mm, 16.5ga/1.50mm, 17ga/1.42mm, 18ga/1.22mm
Chain Mesh Aperture	2"x2"/(50mm x 50mm), 2¼"x2¼"(57mmx57mm), 2⅜"x2⅜"(60mmx60mm), 2½"x2½"(63mmx63mm)
Height	4ft/1220mm, 6ft/1820mm, 8ft/2420mm
Width	Standard 12ft/3650mm; Also available in 8ft, 9ft, 10ft, 14ft

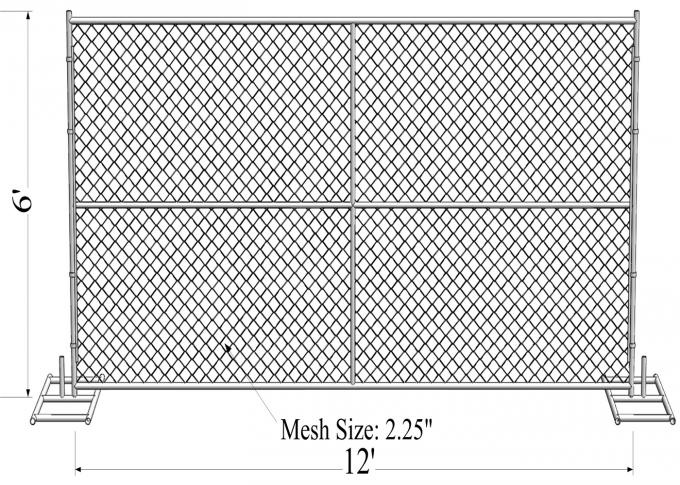

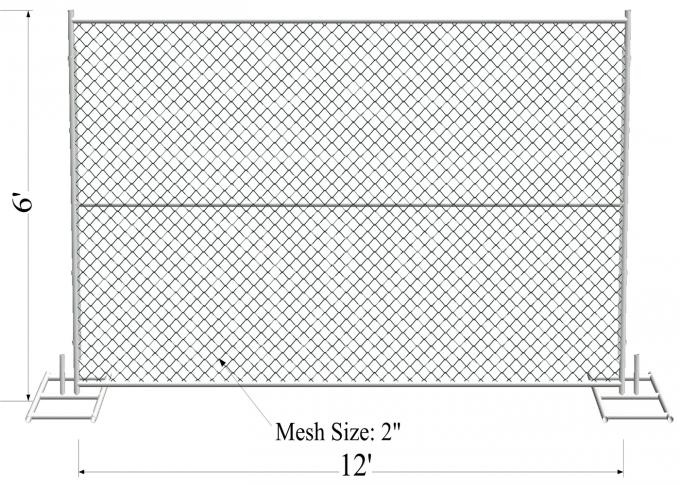

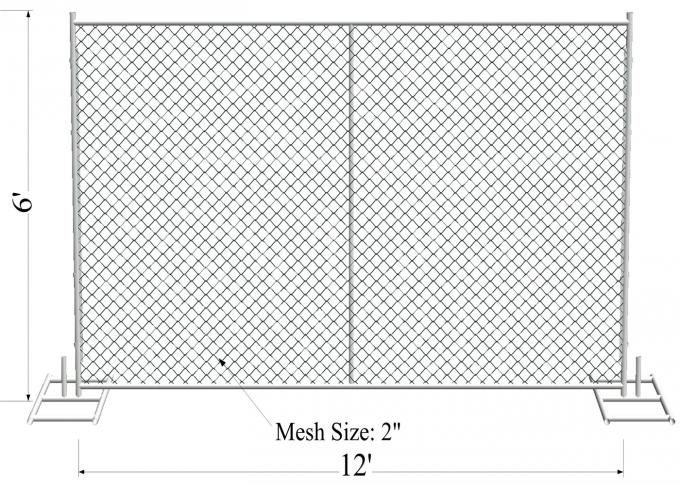

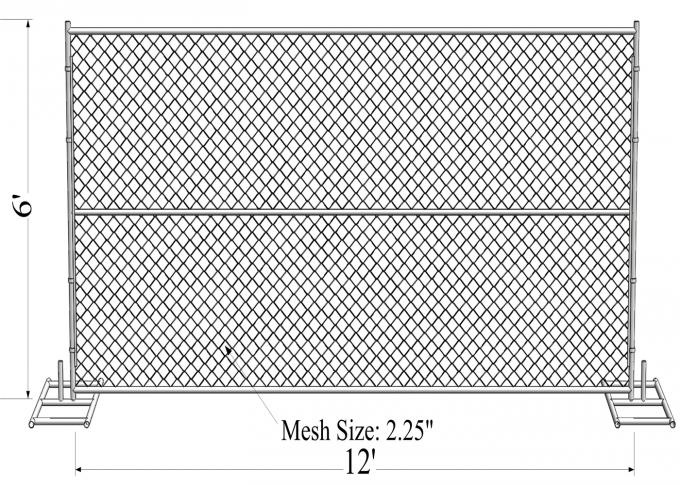

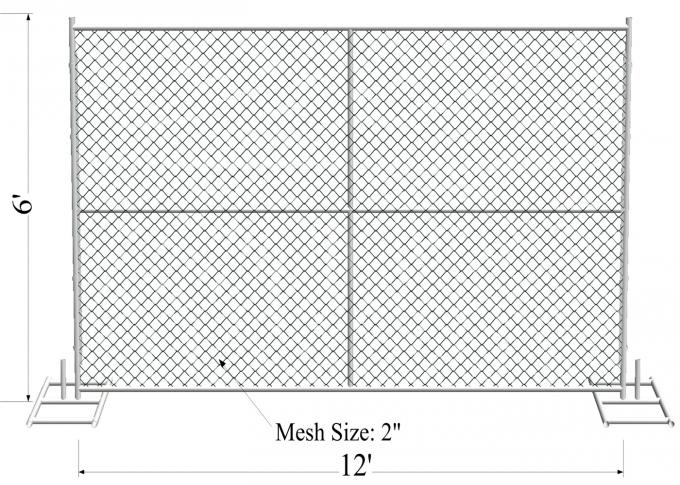

Panel Size	6ft x 12ft, 8ft x 12ft, 4ft x 12ft etc.
Diameter / Gauge	10ga/3.2mm, 10.5ga/3.00mm, 11ga/2.90mm, 11.5ga/2.75mm, 12ga/2.60mm, 12.5ga/2.5mm, 13ga/2.3mm
Base Optional 1	36" length x 30" width x 8" Height /914mmx762mmx203mm
Base Optional 2	36" length x 16" width x 8" Height /914mmx406mmx203mm
Base Optional 3	30" length x 18" width x 8" Height /762mmx460mmx203mm
Standard	ASTM A392-06
Steel	Galvanized Steel Construction
Finish	Corrosion-Resistant Zinc Coating
Transport Packing	Metal pallet Wrapped with Plastic
HDG Zinc Thickness	14 microns/100gram/SQM, 28 microns/200gram/SQM, 42 microns/300gram/SQM, 84 microns/600gram/SQM

Dimension	Wire Dia.	Aperture	Frame Tube	Middle Vertical Tube
6'*10'	2.7mm	58x58mm	33.4mm/1.5mm	25mm OD
6'*12'	2.7mm	58x58mm	33.4mm/1.5mm	25mm OD
6'*14'	2.7mm	58x58mm	33.4mm/1.5mm	25mm OD
8'*10'/14'	2.7mm	58x58mm	33.4mm*1.5mm	25mm OD (cross tube)

Benefits of Temporary Chain Link Fencing:

Versatility and Use:

Chain link fences are versatile. They work well for construction sites, homes, commercial areas, and events, offering security everywhere.

Durability:

Made from materials like galvanized steel and PVC coated low carbon steel wire, these fences are tough and can handle harsh conditions.

Cost-effectiveness:

Chain link fences are an economical choice. They are easy to put up and need little upkeep.

Security:

These fences are sturdy and reliable, offering top-level security.

Customization:

You can choose different heights, wire thickness, and opening sizes to meet your specific needs.

Applications of Temporary Chain Link Fencing:

Construction Sites:

These fences secure construction sites, keeping workers and the public safe from harm.

Events:

They control crowds and secure event spaces, keeping things organized and safe.

Homes:

They add an extra layer of protection to homes and properties.

Commercial Areas:

They are perfect for protecting commercial properties and employees.

Material and Quality:

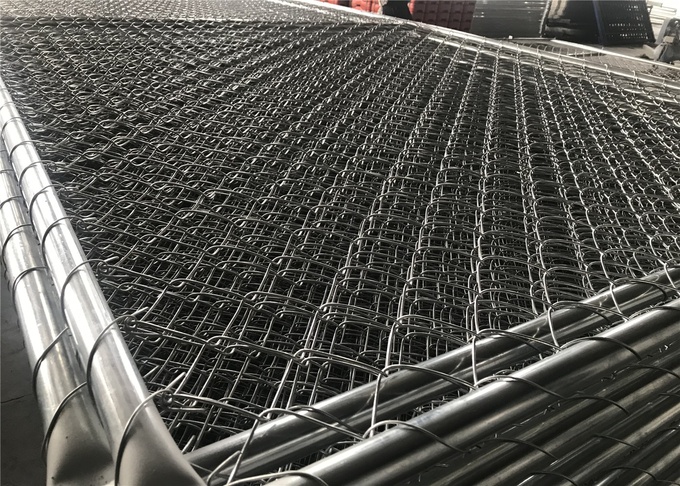

Temporary Chain Link Fences use materials like galvanized steel and PVC coated low carbon steel wire, making them long-lasting and strong. The quality of these fences is high, with galvanized chain link mesh wrapped tightly around the frame tube. This makes the fence structure firm and resistant to damage and corrosion.

Quality Testing and Standards:

These fences go through strict quality tests and meet industry standards. The fences have different post sizes and fittings available and undergo surface treatment processes to ensure strong anti-corrosion properties.



Why Choose Us?

Expert Craftsmanship:

We create high-strength fences with tight wraps of tie wires around the panel frame.

Variety of Options:

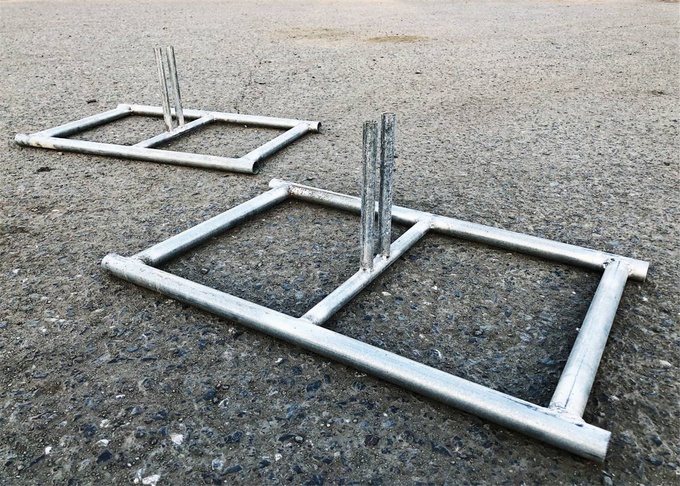

We offer three types of fence feet, each designed to keep the fence panels upright and durable.

Anti-Corrosion Treatment:

Our Temporary Chain Link Fencing  have a hot-dipped galvanized coating to ensure strong anti-corrosion properties.

One-Stop Supply System:

We provide all needed hardware and professional advice to help you choose the most suitable fence for your needs.

Customization:

We accept orders for special panel lengths, heights, pipe thickness, and diameter.

Excellent After-Sales Service:

We assist with shipment, customs clearance, installation, maintenance, and repair instructions, and offer a 3-8 years warranty depending on the product.

Conclusion:

Temporary Chain Link Fencing is a secure, durable, and economical choice for many applications. It’s customizable and made with high-quality materials and craftsmanship, making it a popular choice for those needing reliable temporary fencing. When choosing a supplier, look for one that guarantees quality, offers variety, and provides excellent after-sales service. This ensures you get the most out of your investment in temporary chain link fencing.
