Panel Specifications:

1. Length: Panels can measure up to 78-3/4".
2. Height: You can choose from a range of heights, including 28", 33", and 37-1/2". Custom heights are also available upon request.
3. Shape: Panels come in two main shapes:
   • Rectangular Frame: A standard choice that fits most designs.
   • Rhombic Frame: Offers an angled design ranging from 29° to 37°.

Mesh Details:

1. Style: There are three main Stainless Steel Mesh Balustrades styles to select from:
   • Knotted Cable Mesh: Offers a unique twisted look.
   • Ferrule Cable Mesh: A sturdy choice with connectors.
   • Square Cable Mesh: Perfect for a classic appearance.
2. Size: Depending on your need, you can go for a mesh size of either 60 mm or 80 mm.

Cable Features Stainless Steel Mesh Balustrades :

1. Material: All cables are crafted from high-quality stainless steel, ensuring durability and resistance against rust.
2. Construction: The cables come with a 7 × 7 construction, which means they have seven groups of seven strands each.
3. Diameter: Cables are available in 1.5 mm or 2 mm diameters.

Frame Specifications:

1. Material: Frames can be made from either welded galvanized steel or the superior AISI 316 stainless steel.
2. Diameter: Depending on your design preference, frame diameters range from 17.2 mm to 26.9 mm.
3. Wall Thickness: The frames come with a consistent wall thickness of 2 mm.

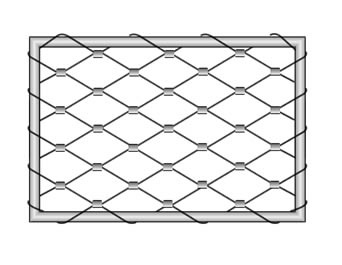

Rectangular stainless steel mesh balustrade

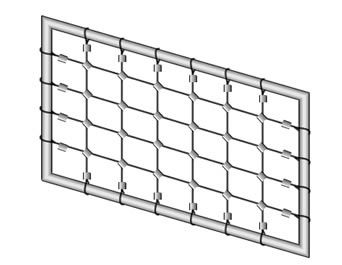

Rhombic stainless steel mesh balustrade

Top Specifications Stainless Steel Mesh Balustrades :

• Rectangular Stainless Steel Mesh Balustrade: A popular choice for a classic look.
• Rhombic Stainless Steel Mesh Balustrade: Gives a dynamic appearance with angled designs.

For those who want specifics, here's a quick glance at the top configurations of stainless steel balustrades:

Note that all mesh balustrades can be customized and manufactured according to your specific needs.

In conclusion, stainless steel mesh balustrades not only offer an elegant look but also promise longevity. Whether you are renovating your space or setting up a new one, consider these specifications to achieve the best results.
