Usage: insert on top of the fence, to connect two panels together
Shape:
Clip horizontal rail could be both flat plate or square tube/bar;
And the two legs could be bars or tubes
Known by many as the portable or security fence, BMP's temporary construction fencing stands out due to its high-quality materials and state-of-the-art construction techniques. Not to mention, it's priced just right to deliver unmatched value for your investment.

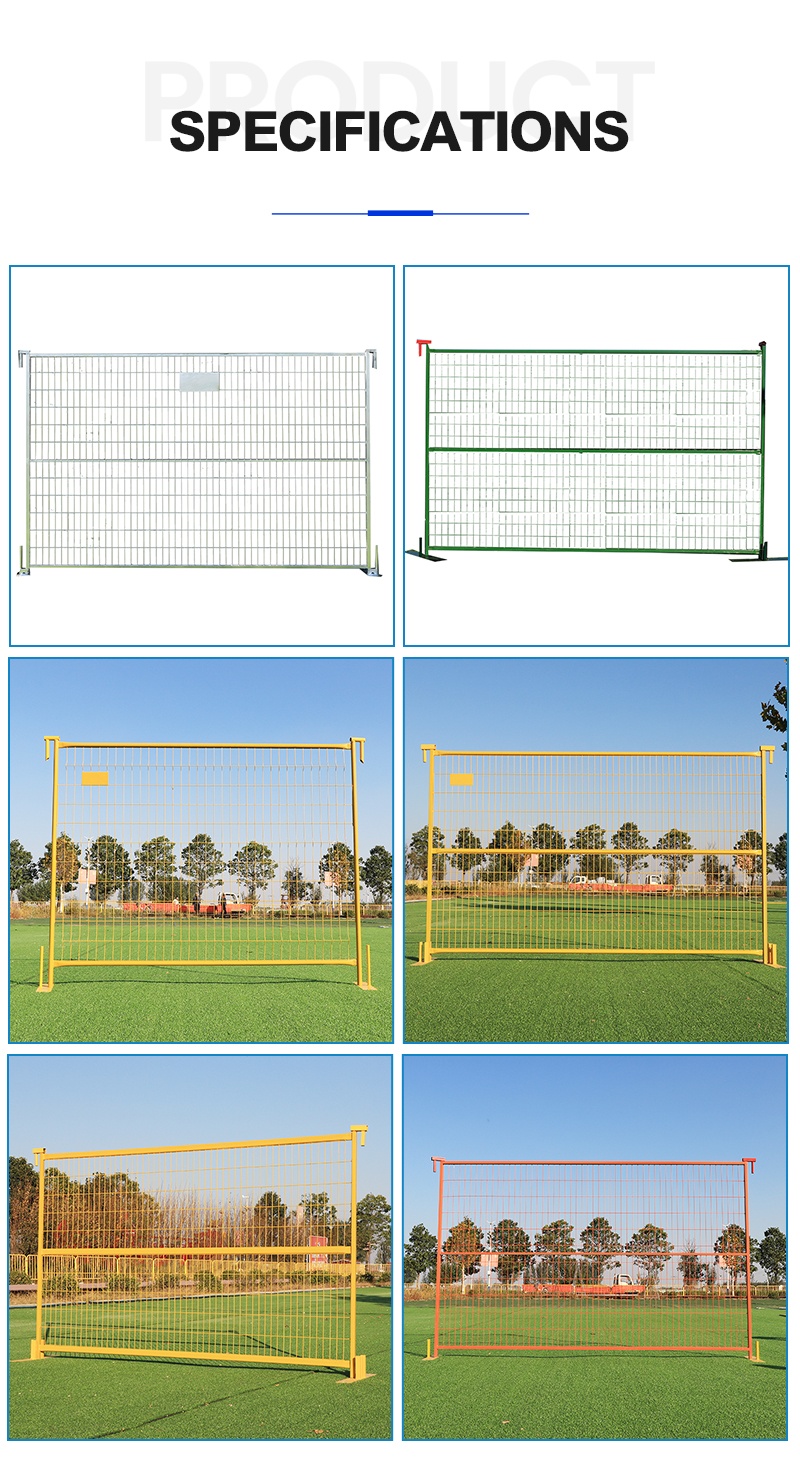

Feature | Specification |
---|---|
Fence Height | 4ft, 6ft, 8ft |
Fence Width/Length | 9.5ft, 9ft, 10ft |
Wire Diameter | 3.5mm, 3mm, 4mm |
Mesh Hole Opening | 50x100mm, 75x100mm, 55x110mm |
Frame Square Tube | 25x25mm, 30x30mm |
Horizontal Square Rail | 20x20mm, 25x25mm |
Fence Feet | 863x89x8mm, 750x100x7mm |
Accessory | Top clip (for panel connection) |
Raw Material | Electro galvanized or pre-hot dipped galvanized |
Surface Treatment | Epoxy polyester powder coated, PVC or fully galvanized |
Available Colors | Blue, yellow, orange, red, green, black, grey, white |

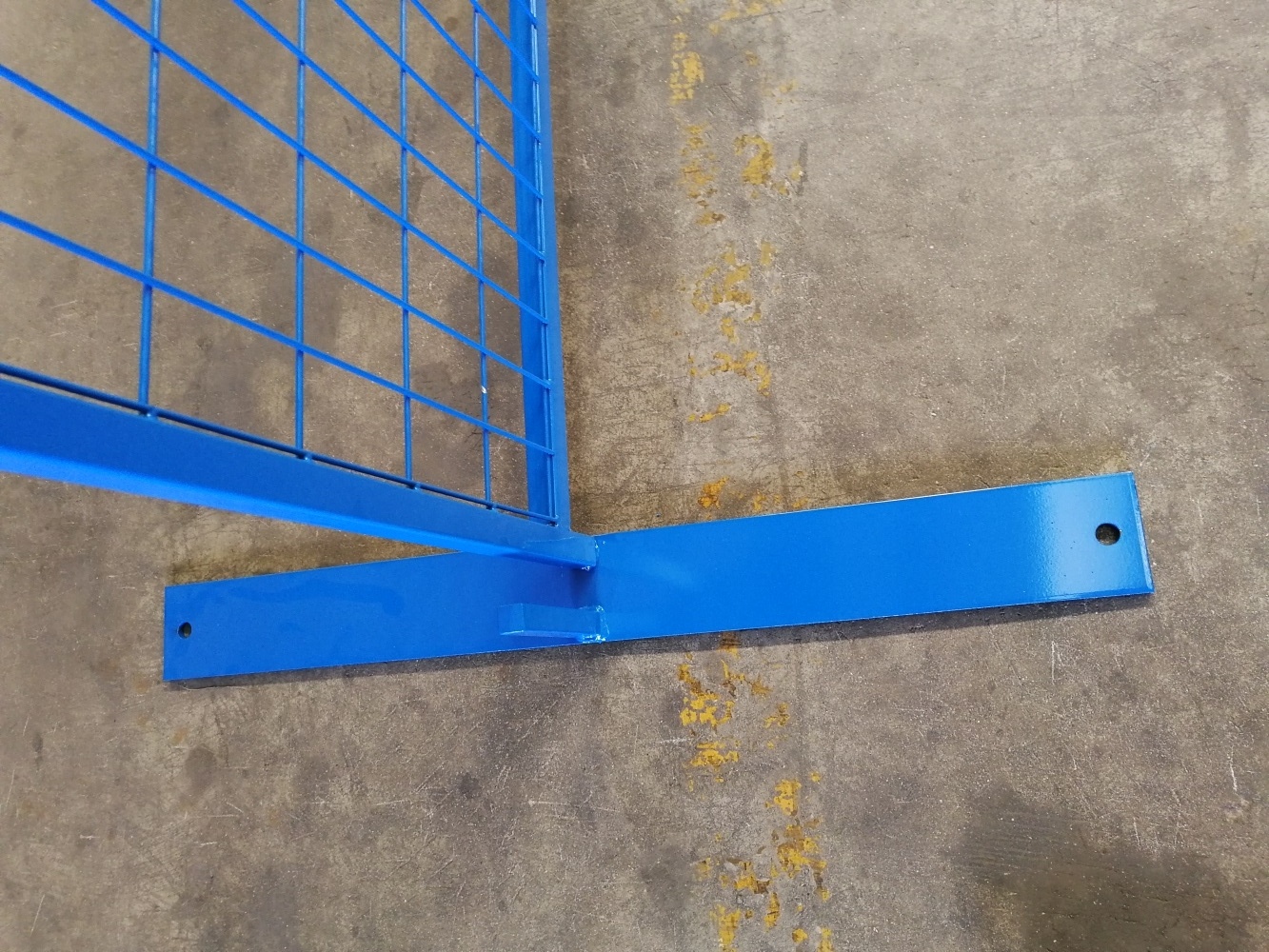

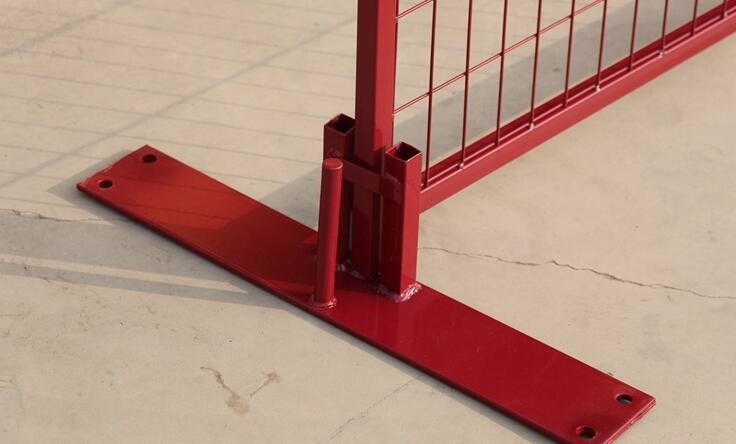

Standard Fence Base/Feet: Popular sizes include 750x100x7mm and 863x89x8mm with a powder-coated surface.
Reinforced Fence Base/Feet: Built to resist wind and external forces, with two additional square tubes.

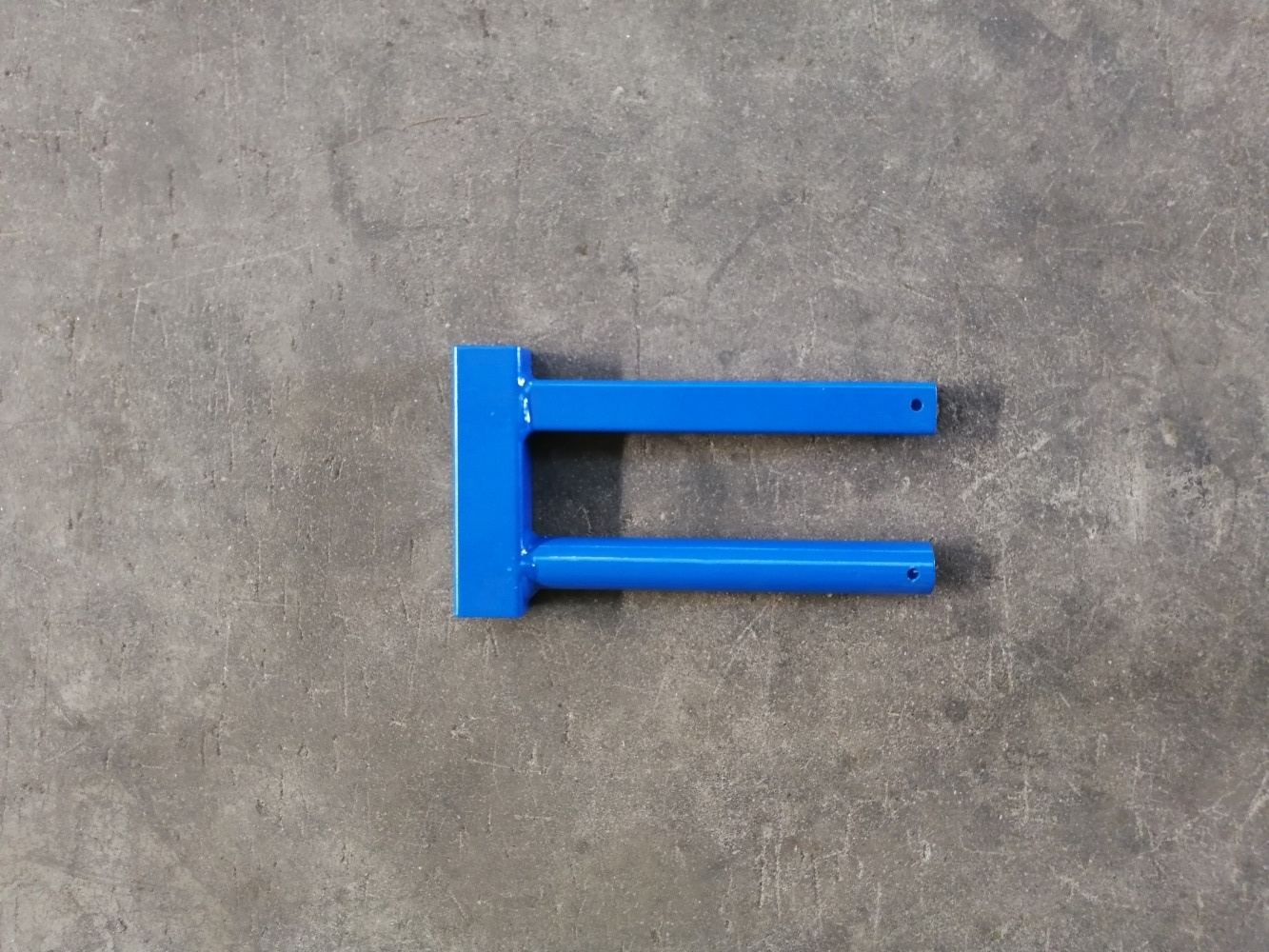

Top Clip: Primarily used to connect two panels, available in diverse shapes and functionalities.
Standard fence base/feet Popular size: |
Reinforced fence base/feet Popular size: |
Top clipUsage: insert on top of the fence, to connect two panels together Shape: Clip horizontal rail could be both flat plate or square tube/bar; And the two legs could be bars or tubes |
Choose the Right Materials: Start by picking strong and durable materials like galvanized steel. This helps the fence last longer and resist rust.
Check the Design: Make sure the fence design meets Canada's safety standards. It should be tall enough and stable to ensure it won't easily fall over.
Welding Inspection: Look at all the welding points. They should be strong and smooth. This means no gaps or weak spots.
Measure Everything: Use a tape measure to check the height, width, and length of the fence panels. They should match what's promised.
Test the Coating: The fence should have a good quality coat, like powder coating. This coat protects it from rain and snow. Touch and look at the coat. It should be even and not chip off.
Test Set Up and Take Down: Try setting up and taking down the fence. It should be easy and quick without needing many tools.
Inspect Accessories: Look at the Temporary Construction Fencing clips, bases, and feet. They should fit well and be strong enough to hold the fence panels.
Safety First: Make sure the fence doesn't have sharp edges or points that can hurt someone. It should be safe for workers and the public.
Weather Testing: Put the fence out in different weather conditions like rain, snow, and strong winds. It should stand strong and not rust or fall over.
Feedback: Ask users what they think about the fence. If they find problems or have suggestions, think about how to make it better.

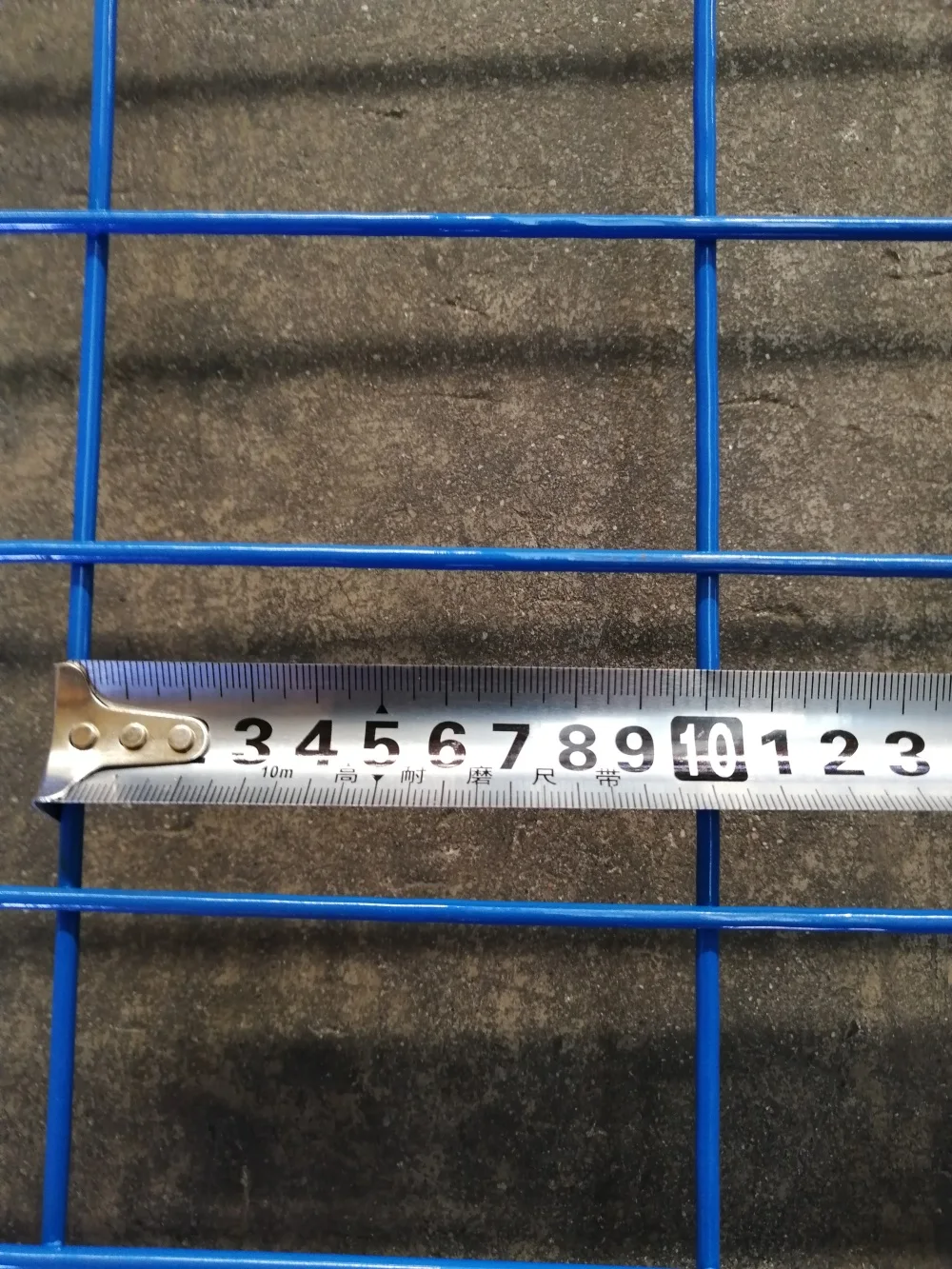

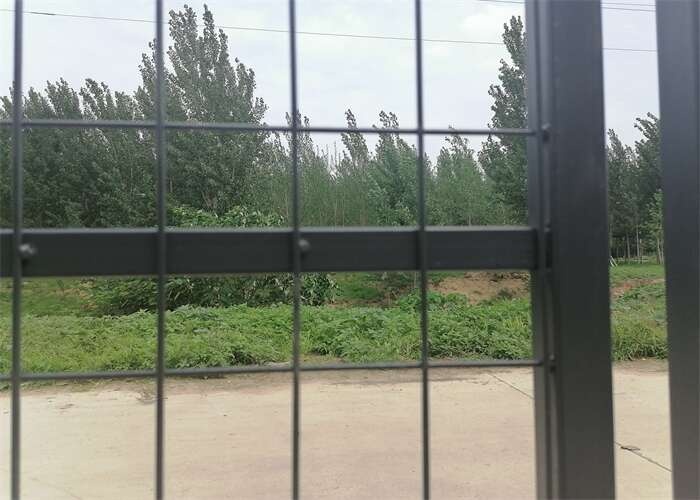

Mesh size
|

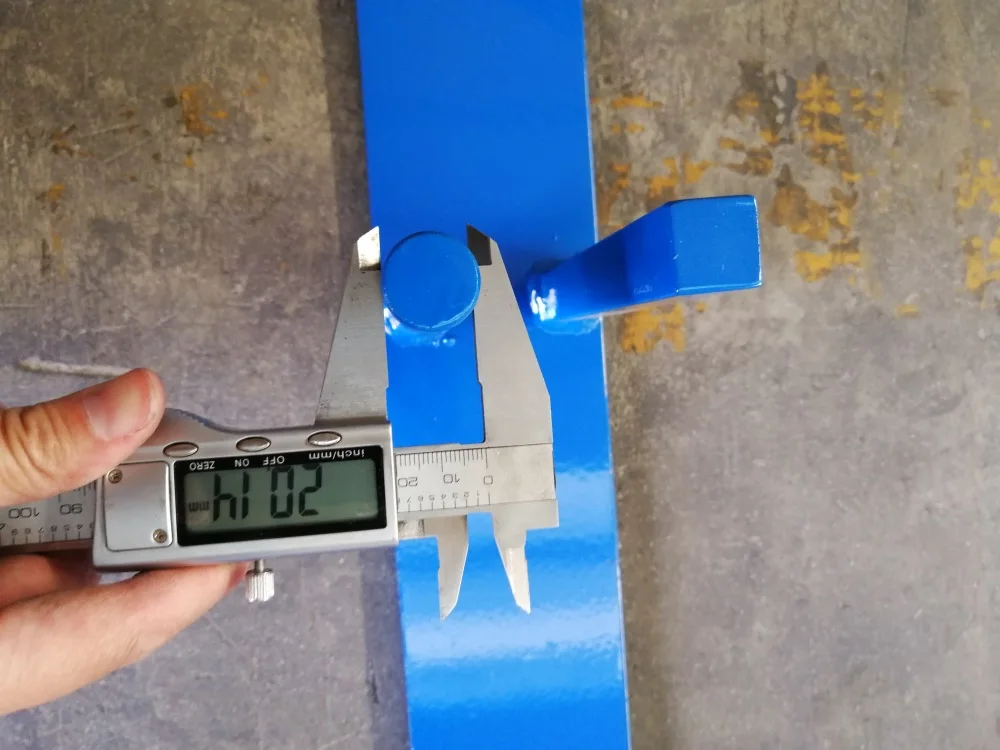

Check wire
|

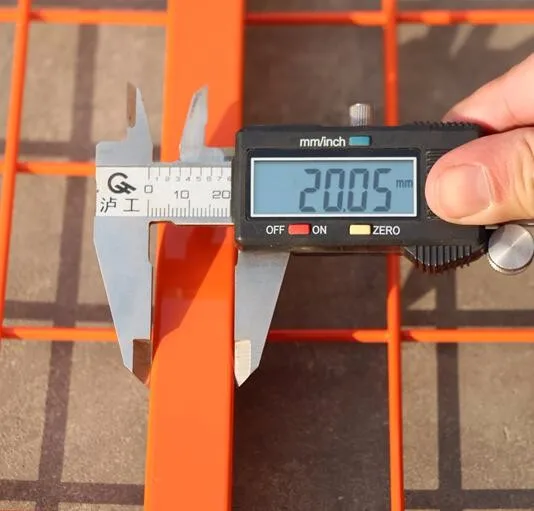

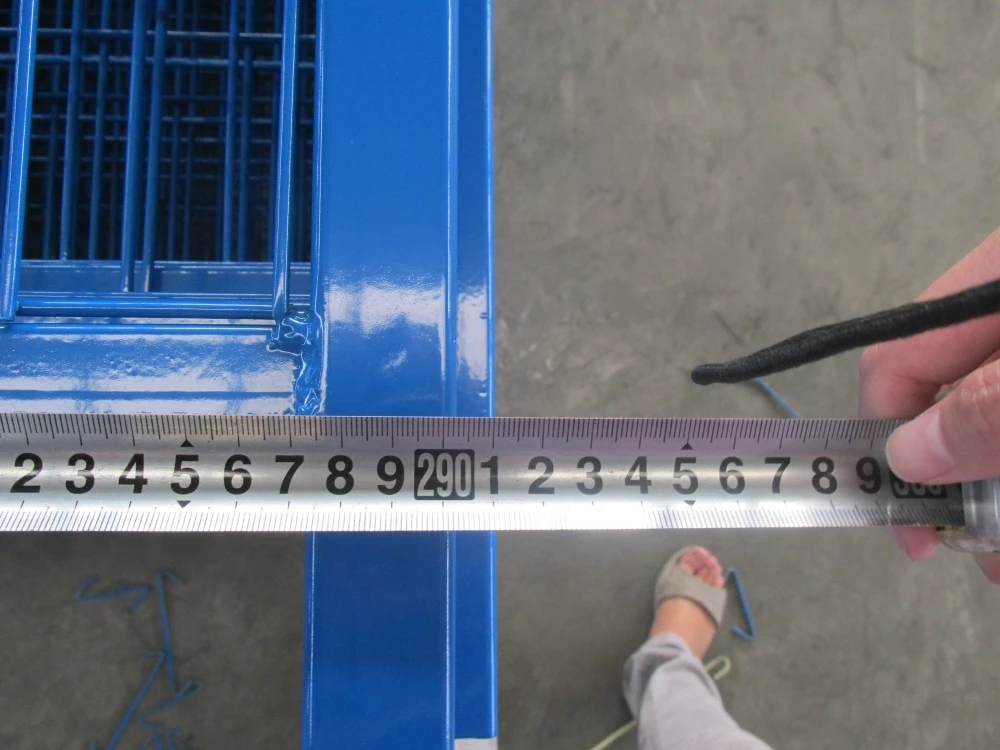

Fence tube
|
Fence width/length
|

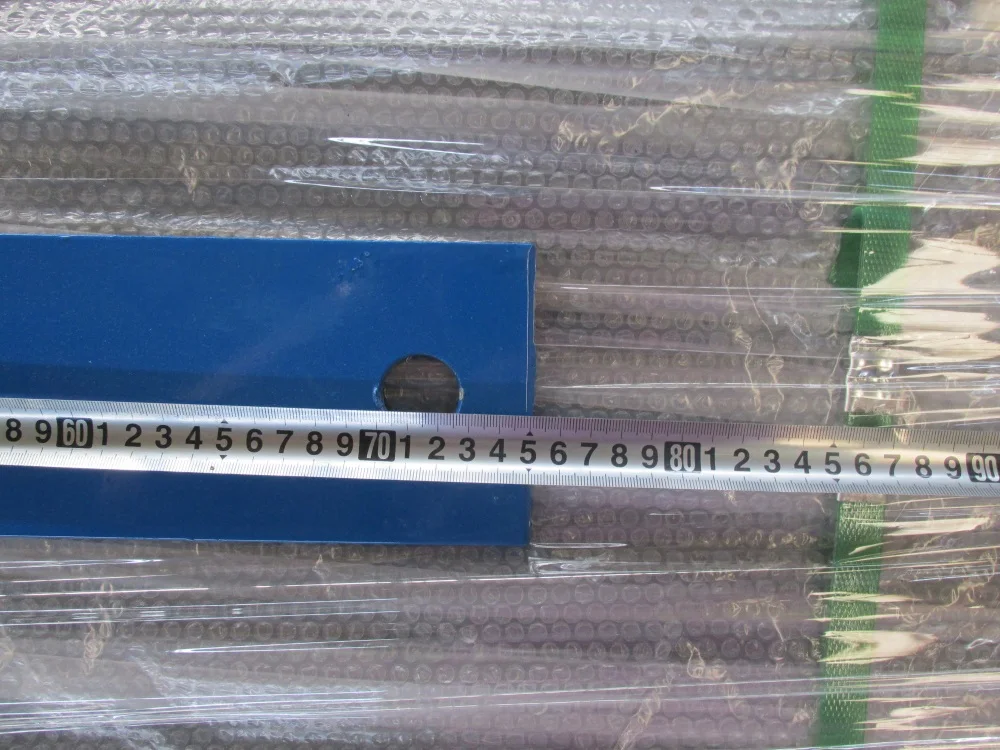

Feet length
|
Feet tube
|

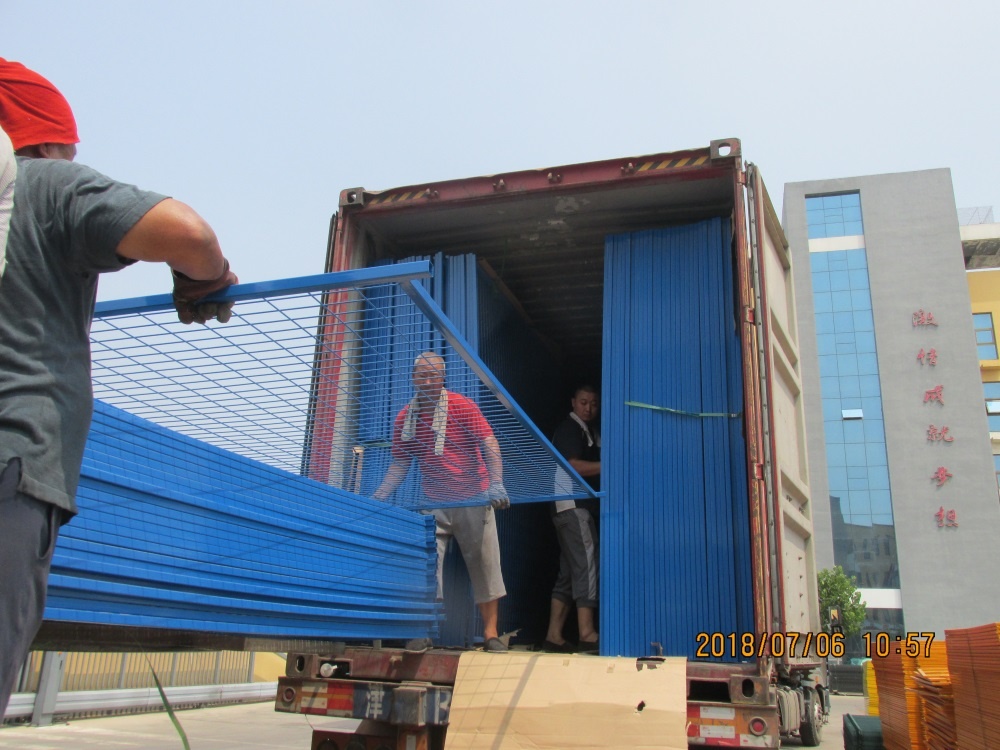

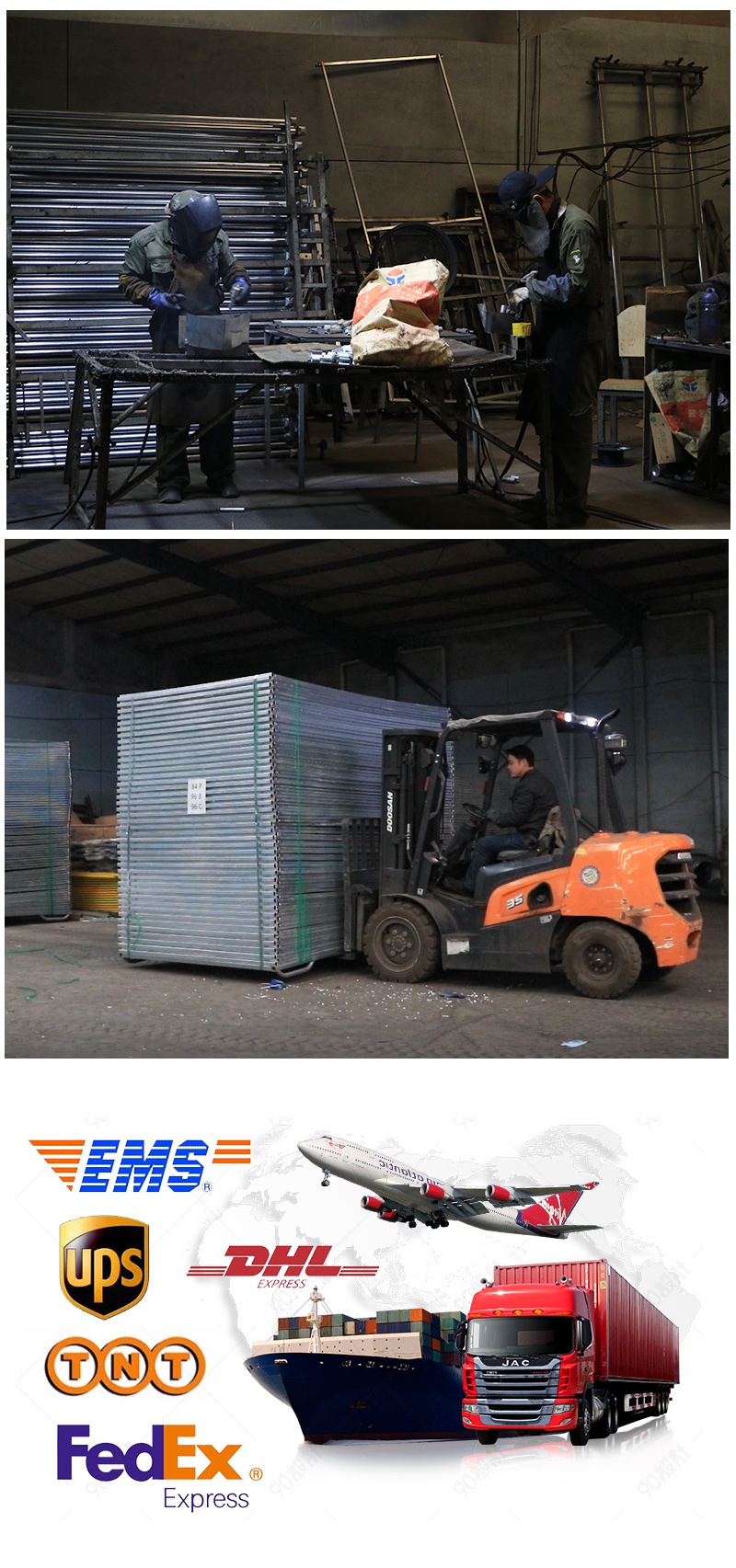

When it comes to delivery, BMP ensures the fencing reaches you in pristine condition. Whether stacked on steel pallets and wrapped with protective layers or loaded individually into containers, every measure is taken to prevent scratches.
Get Ready to Pack: Make sure you have all the Temporary Construction Fencing parts: panels, feet, clips, and other accessories.

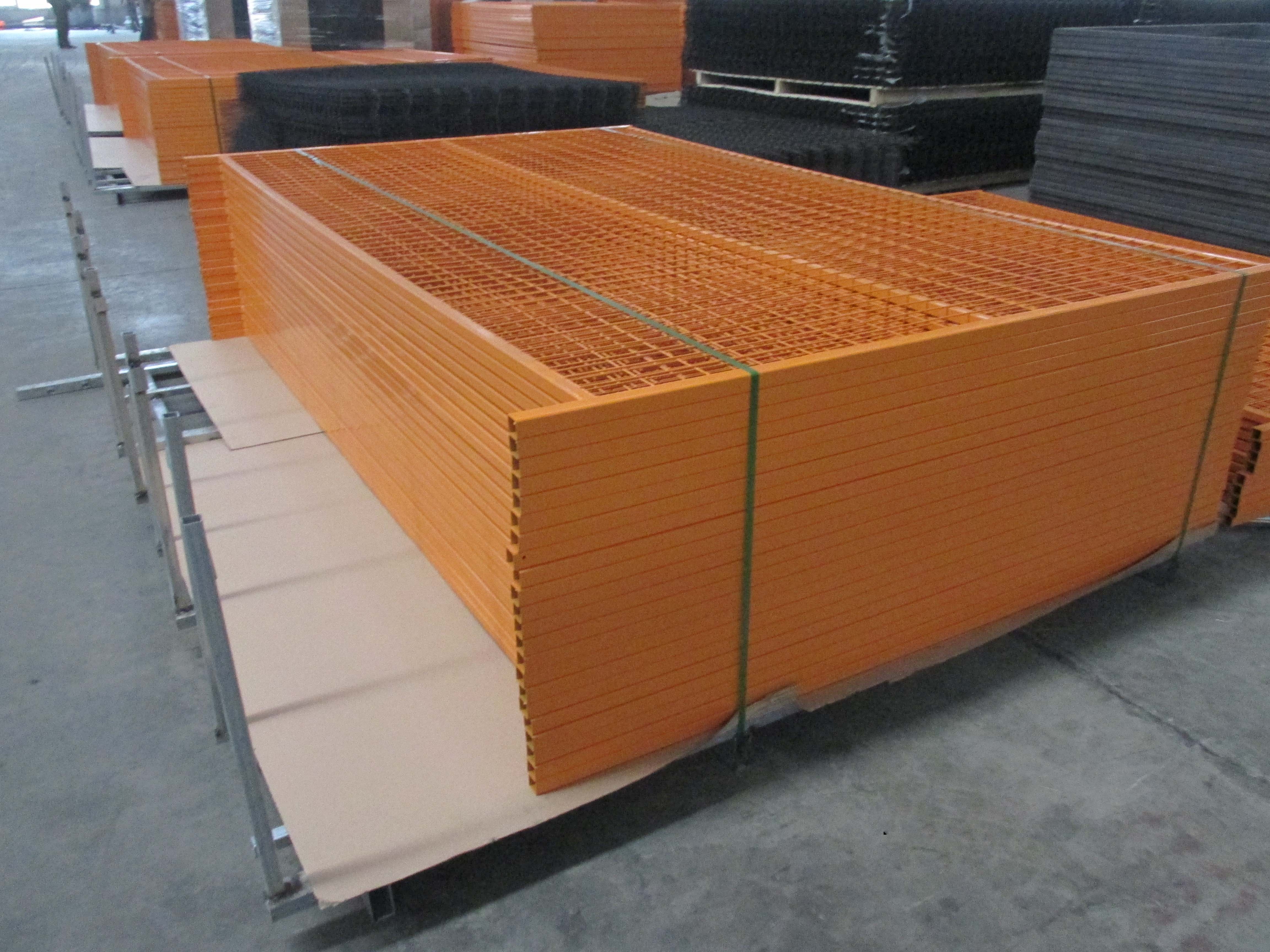

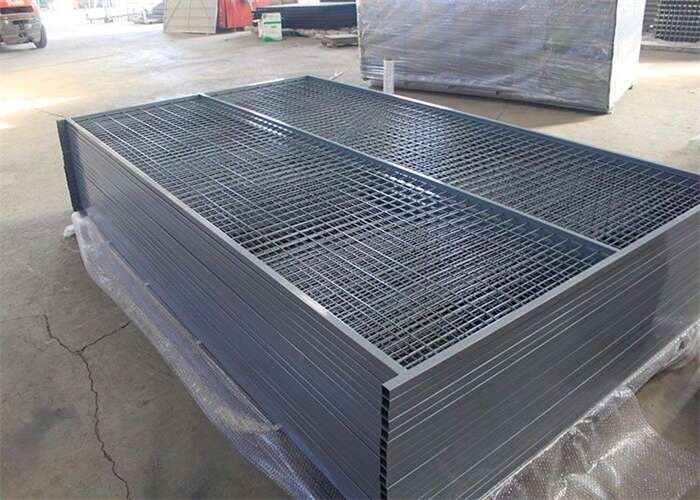

Stack the Panels: Place the fence panels one on top of the other. Make sure they sit flat and don't wobble.
Wrap Them Up: Use plastic film to wrap the stacked panels. This keeps them safe from scratches.
Protect the Corners: Put cardboard on the corners of the stack. This prevents damage during transport.
Handle the Feet and Clips: Put the feet and clips in separate boxes. Seal the boxes tight.
Load on a Pallet: Move everything onto a strong metal pallet. This makes it easier to move and load onto trucks.
Tighten Everything: Use nylon belts to hold everything in place on the pallet.
Check the Address: Make sure you have the correct address for where the fence is going.
Load the Truck: Use a forklift or strong workers to load the pallet onto the delivery truck.
Drive Safely: Take the fence to its new home. Drive carefully to make sure nothing falls or breaks.
Deliver On Time: Make sure the Temporary Construction Fencing gets to its destination when promised.

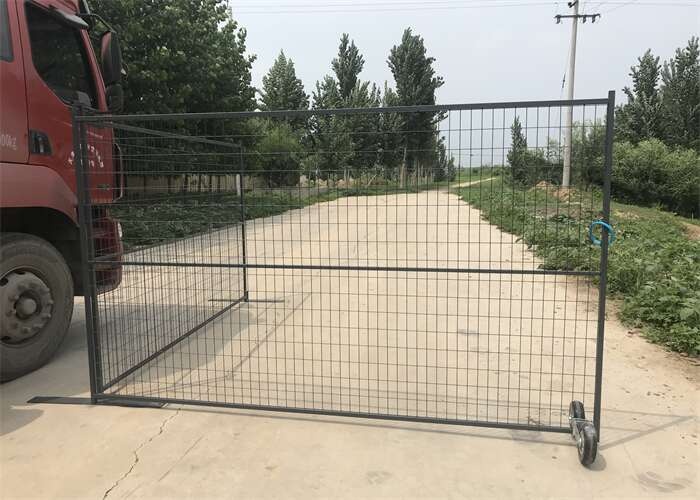

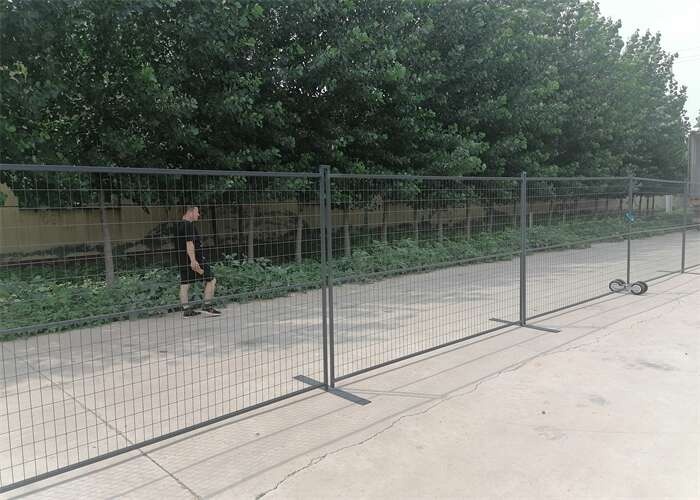

Our temporary fencing isn't just for construction sites. They find diverse applications, with several usage photos available from our satisfied Canadian clientele.
BMP, founded in 2006, stands as a paragon in the wire mesh fence industry. BMP comes with the assurance of the parent company's reputation, production capability, and adherence to international standards.
Join us on a journey where quality meets innovation. Choose BMP for temporary fencing solutions that are a class apart.
