  • Power Station Chain Link Fence: Ultimate Security for Energy Hubs
Power Station Chain Link Fence: Ultimate Security for Energy Hubs

Power Station Chain Link Fence: Ultimate Security for Energy Hubs

  • Product No.:2023105102730
  • Price:55.88$/roll
  • Colour:RAL
  • Hs Code:73144900
  • Finish:Hot dipped Galvanized and Powder coated
  • Mesh Aperture:2
  • Packing:Metal pallets
  • MOQ :100 rolls
  • Height:1m 1.2 1.5 1.8 2.0m
  • Width:10m 15m 20m 30m
  • Guarantee:5 Years
  • Certificate:ISO
  • Online Inquiry

The protection of power stations, particularly nuclear ones, is of paramount importance. The challenges of securing such vital installations necessitate using a fencing system that combines both security and durability. Enter the Power Station Chain Link Fence – a unique solution tailored for the specific demands of nuclear power plants.

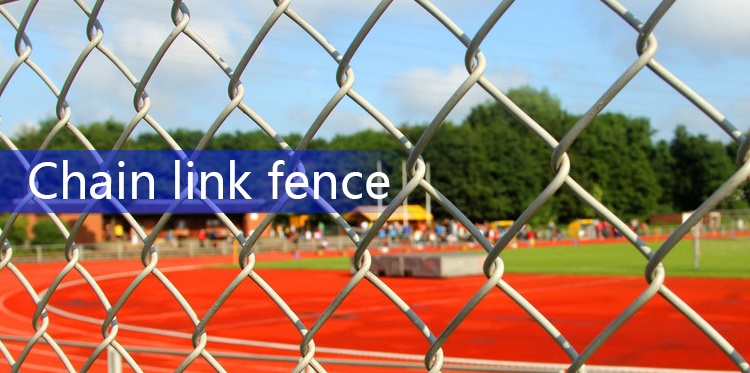

Chain link fence galvanized diamond hole cyclone wire fence design galvanized chain link fence wire mesh rolls

Introduction to Power Station Chain Link Fence

Power Station Chain Link Fences are specially designed for nuclear power plants. Their significance lies in their superior corrosion and rust-resistance features. Given that many nuclear power stations are located along coastlines, these fences ensure longevity and robustness in such challenging environments.

Key Specifications of Chain Link Fence for Nuclear Power Plants

Specification Details
Nominal Coated Wire Diameter 6 (0.192 inch / 4.88 mm) to 9 (0.148 inch / 3.76 mm)
Mesh Size Ranges from 1 inch (25.4 mm) to 2 inches (50.8 mm)
Fence Height Spanning from 72 inches (1830 mm) to 144 inches (3660 mm)
Zinc Coating Weight Minimum of 2.00 OZ/ft2 (610 g/m2)
Breaking Strength Varies, with a peak at 2170 lbf (9650 Newtons) for 6-gauge wire

Technical Note: The breaking strength of the fence is determined based on a minimum tensile strength of 75,000 psi.

Gauge Nominal Coated Wire Diameter (Inch/mm) Mesh Size (Inch/mm) Fence Height (Inch/mm) Zinc Coating Weight (OZ/ft2/g/m2) Breaking Strength (lbf/Newtons)
6 0.192 / 4.88 2 / 50.8 72–144 / 1830–3660 2.00 / 610 2170 / 9650
- - 1-3/4 / 44.5 72–144 / 1830–3660 - -
9 0.148 / 3.76 2 / 50.8 72–144 / 1830–3660 2.00 / 610 1290 / 5740
- - 1–3/4 / 44.5 72–144 / 1830–3660 - -
- - 1–1/4 / 31.8 72–144 / 1830–3660 - -
- - 1 / 25.4 72–144 / 1830–3660 - -

Applications of the Power Station Chain Link Fence

While the primary application is in nuclear power stations located near coastlines, the fence's resilience makes it suitable for:

  • Thermal Power Plants: Given its resistance to sudden temperature changes.
  • Research Facilities: That require high security and visibility.
  • Substations: To protect equipment and ensure safety.
  • Other Critical Infrastructure: Where security and durability are paramount.

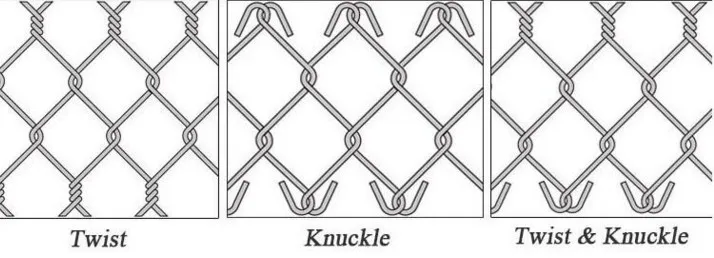

Weaving Methods of Chain Link Fence:
twist, knuckle, twist&knuckle

Advantages of Using the Power Station Chain Link Fence

  1. Visibility and Security: The unique diamond mesh design ensures a clear view without compromising on security.
  2. Highly Resilient: Provides exceptional corrosion and moisture resistance, ensuring longevity.
  3. Sturdy Construction: With its flat, smooth surface, the fence promises a robust build and unmatched performance.
  4. Eco-friendly: The fence is non-toxic and doesn’t emit radiation, making it an environmentally-friendly choice.
  5. Easy Installation: Designed for swift and hassle-free installations.
  6. Maintenance-Free: Once installed, it requires minimal to no upkeep, ensuring peace of mind.

Why Choose ?

In the world of fencing, especially for critical installations like power stations, compromise isn’t an option. The Power Station Chain Link Fence offers a blend of strength, durability, and cost-effectiveness. Whether you're looking at large orders or seeking a fencing solution that stands the test of time and environmental challenges, this fence emerges as the top contender.

In addition to its technical prowess, its eco-friendly nature ensures that while we secure our present, we aren’t jeopardizing the future. A fence that offers visibility, security, and eco-consciousness is truly a modern marvel in the world of fencing solutions.



Conclusion

In a landscape where security cannot be taken lightly, particularly in energy sectors, the Power Station Chain Link Fence stands tall, quite literally. It exemplifies the fusion of innovation, technology, and commitment to environmental sustainability. As the energy sector continues to expand and evolve, solutions like these ensure that while we harness the power of nature, we also respect and protect it. Whether you're in charge of a sprawling power station or a research facility, this fence is the trusted ally you've been looking for.
